Corrugated steel water tank
Durable. Flexible. Built for Large Capacity.
GOOYI Corrugated Steel Water Tank is manufactured from high-strength galvanized steel sheets with a food-grade liner, offering a cost-effective and reliable solution for safe water storage in various applications.
Product Overview

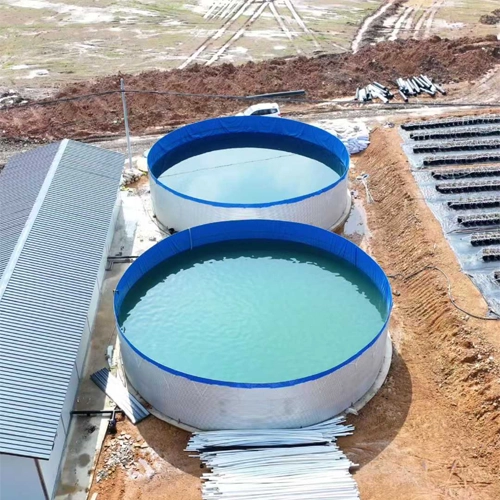

Corrugated steel water storage tank
Corrugated steel water tanks are modular water storage devices composed of a hot-dip galvanized steel frame and a high-strength PVC/canvas lining. They feature convenient installation, corrosion resistance, flexible capacity, and easy transportation. The tank uses a bolted galvanized steel structure for support and is lined with a food-grade waterproof lining. Different sizes and capacities can be customized according to project requirements.

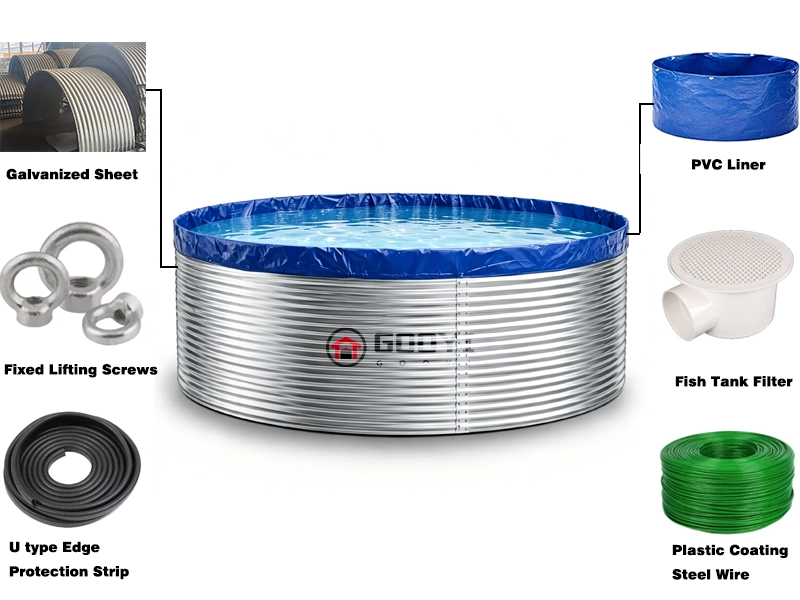

Corrugated steel water tank structure
| Parameter | Specification |
|---|---|
| Product Name | Corrugated Steel Water Tank |
| Material | Hot-Dip Galvanized Corrugated Steel |
| Steel Thickness | 1.0 / 1.2 / 1.5 / 2.0 mm |
| Capacity | 5–5,000 m³ |
| Diameter | 3–30 m |
| Height | 0.95–2.8 m |
| Liner Material | PVC |
| Liner Thickness | 500 / 700 / 900 / 1200 g/m² |
| Cover | PVC Cover / Steel Cover |

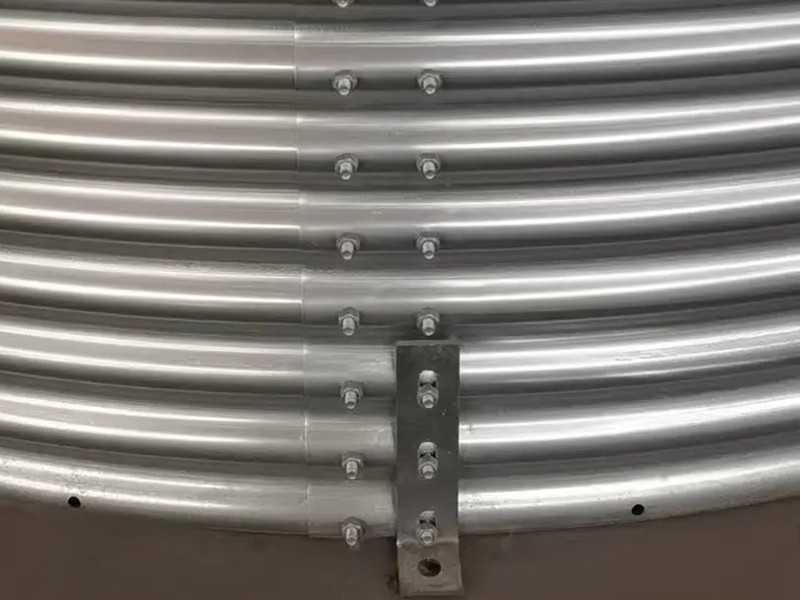

| Connection | Bolted Assembly |
Standard accessories include
Technical Specifications for Corrugated Steel Water Tanks

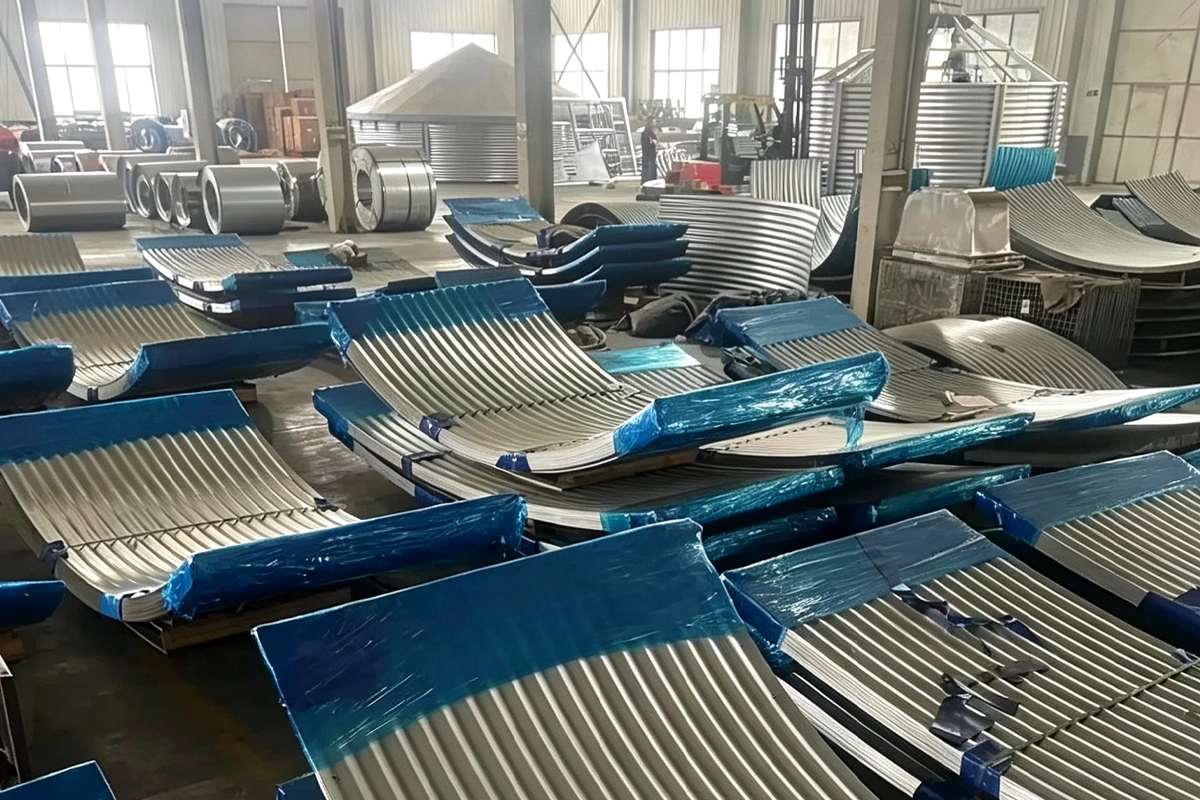

Corrugated steel plate
1. Available thicknesses: 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm
2. Galvanized coating thickness: 275 g/m²
3. Panel height: 0.9 m / 1.2 m / 1.45 m; total tank height is determined by stacking panels.

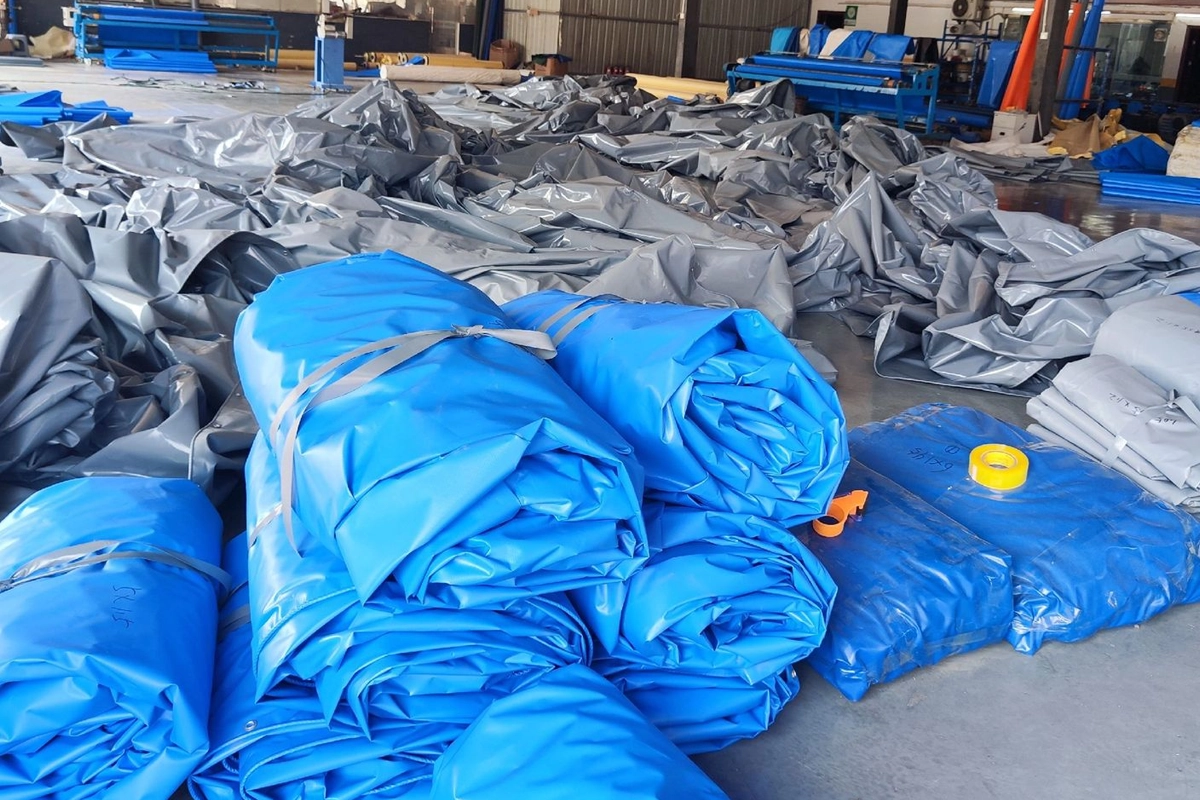

Water tank liner
1. Options: 500g = 0.38mm, 700g = 0.54mm, 900g = 0.7mm, 1200g = 0.9mm
2. Color: Customizable (default: blue)
3. Material: Standard PVC; reinforced PVC (potable water grade)

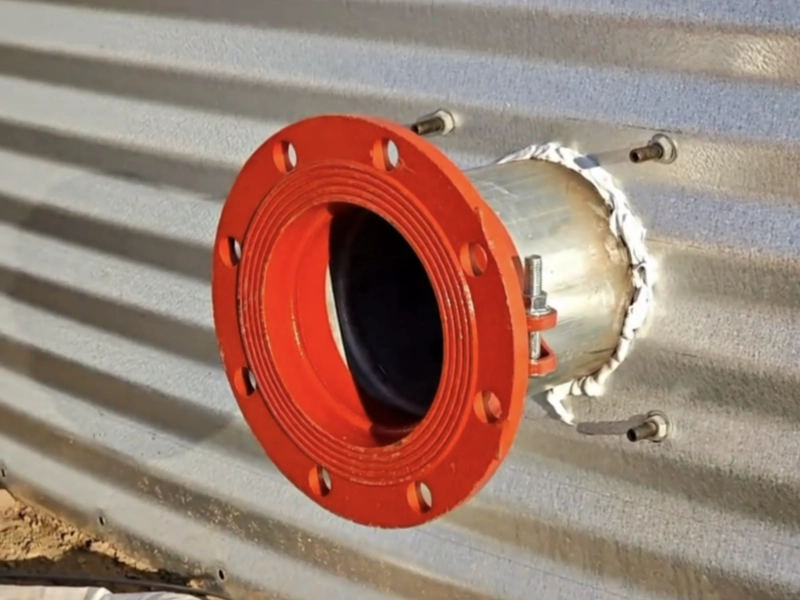

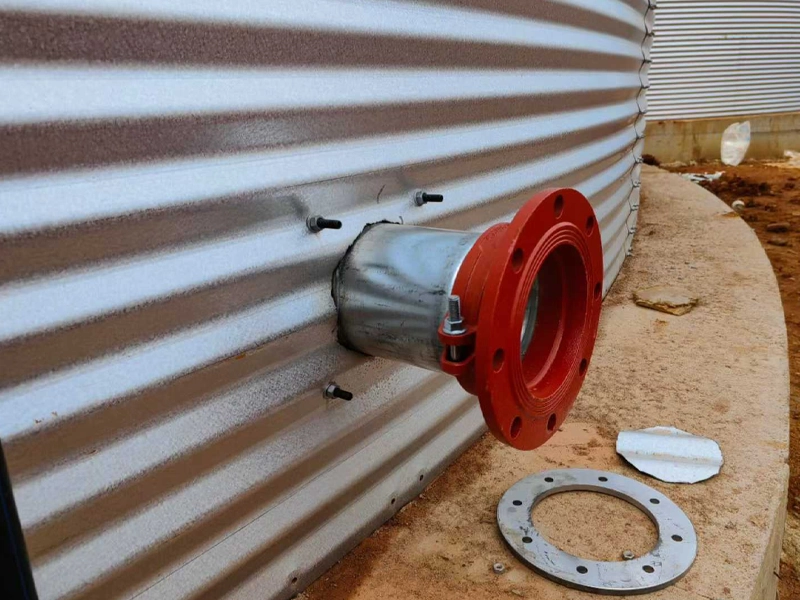

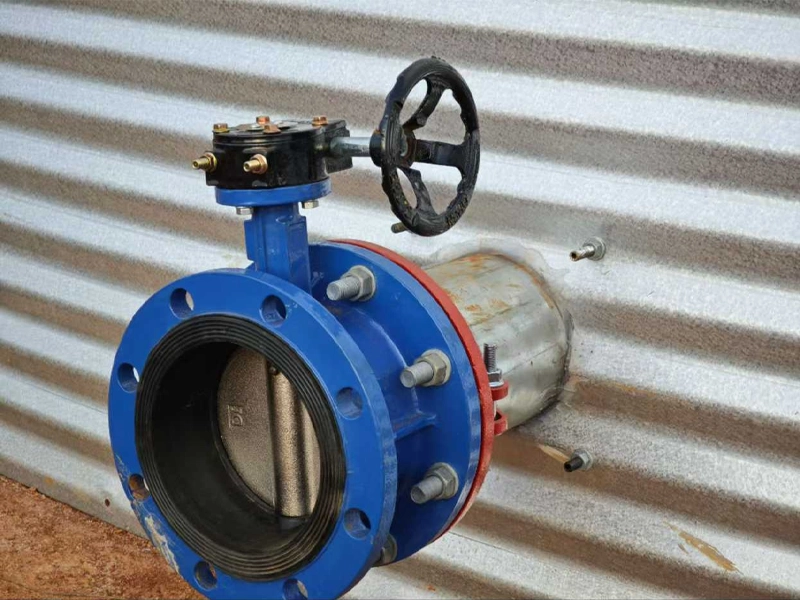

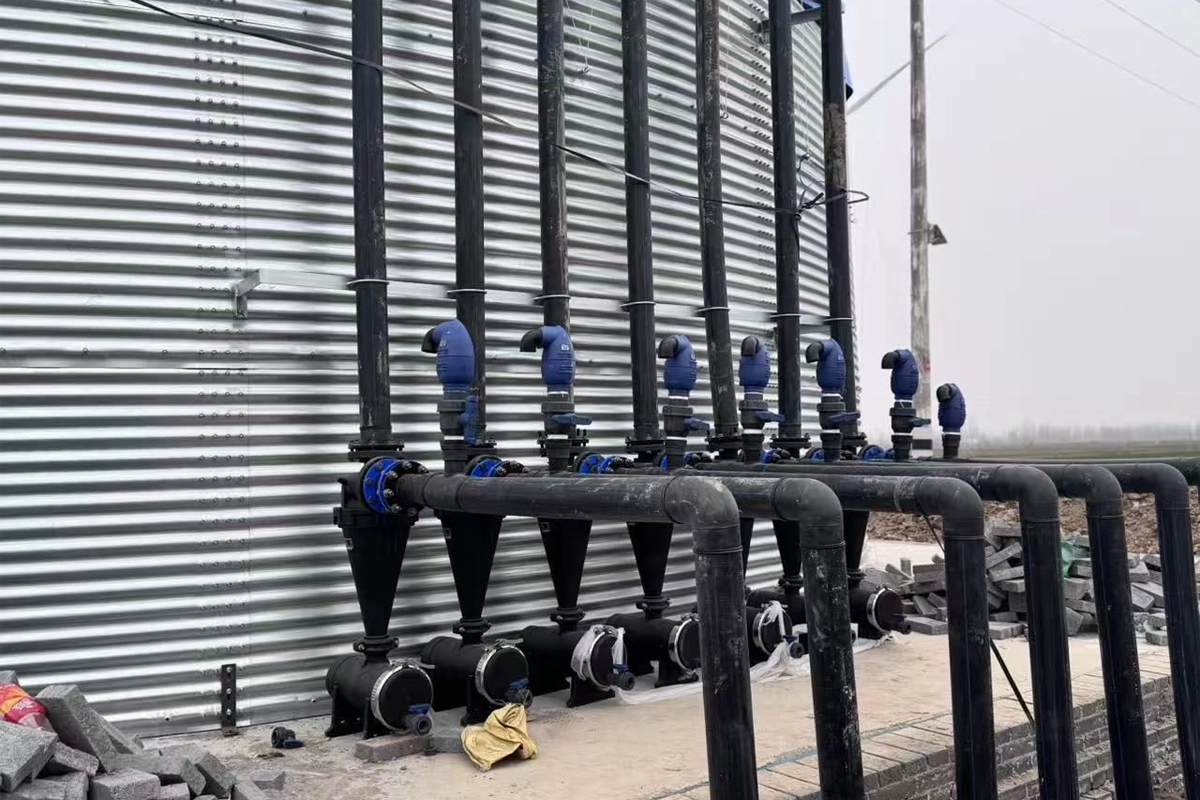

Flange opening
1. Flange: Default size for aquaculture tank filters is 110/160 mm.
2. Water storage tank opening dimensions (customizable upon request).

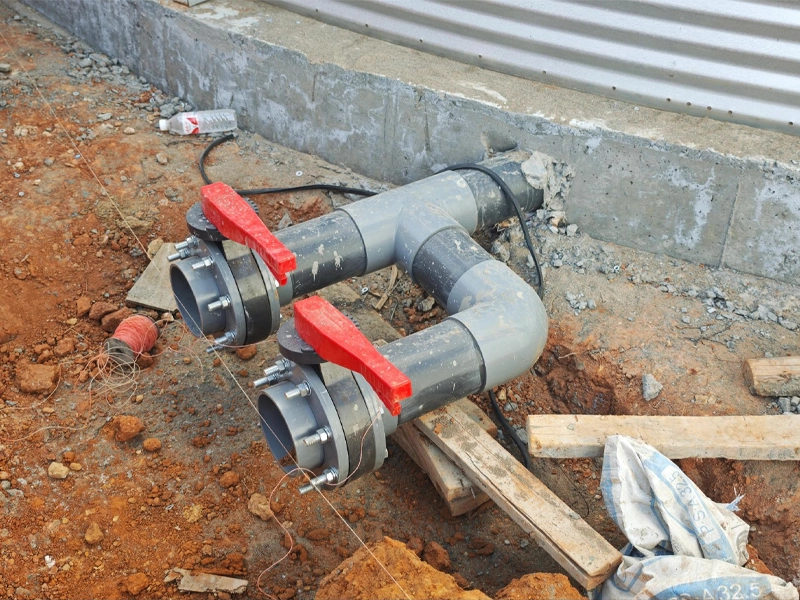

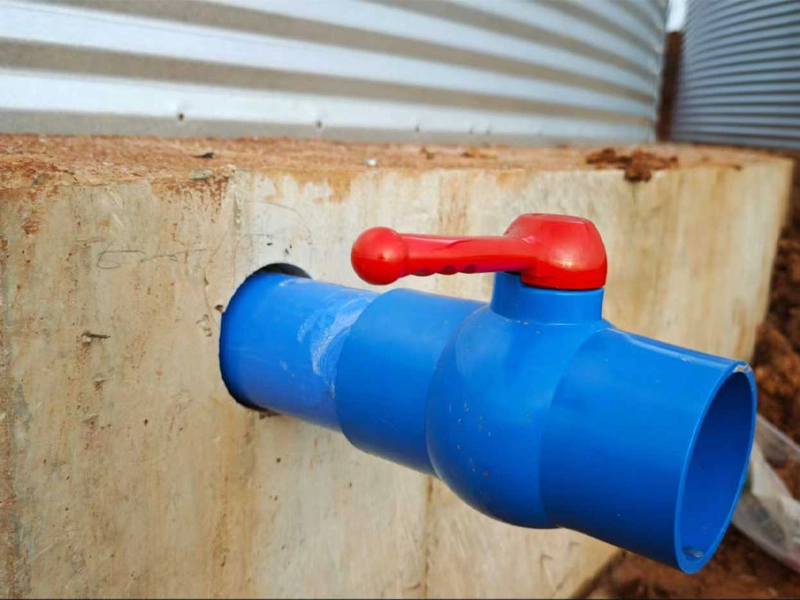

3. Inlet/Outlet/Drain: Customizable locations.
Water Tank Cover Options
PVC Cover and Steel Roof Solutions for Corrugated Steel Water Tanks

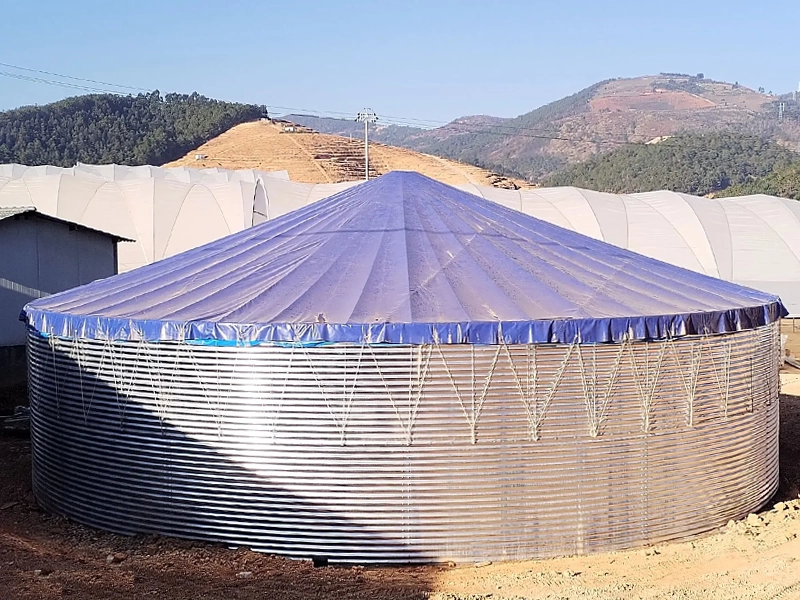

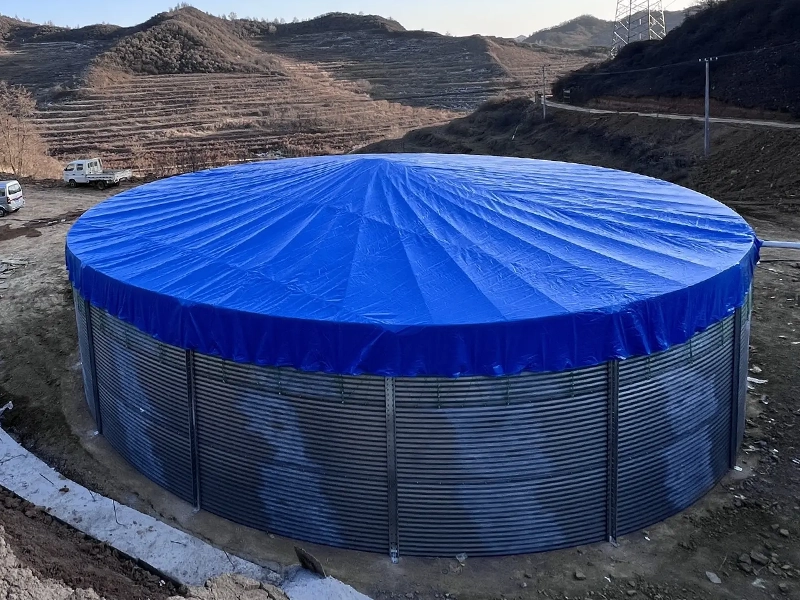

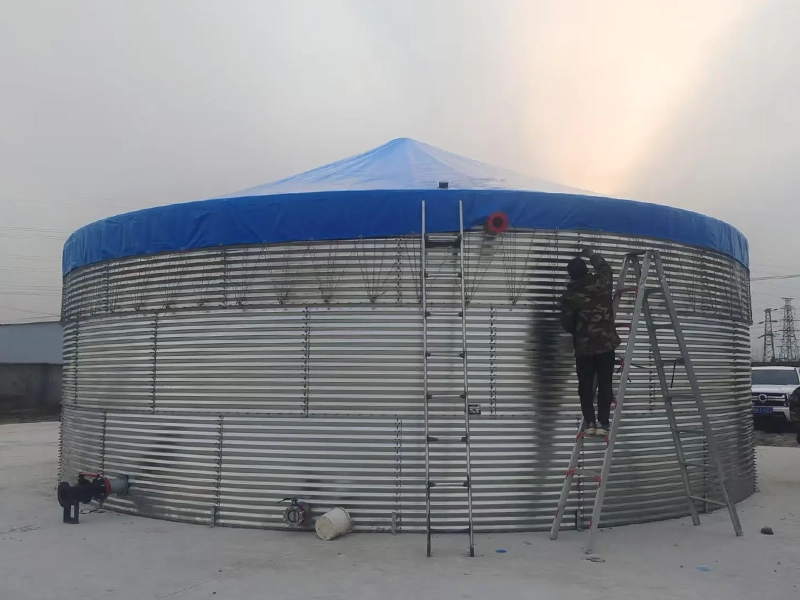

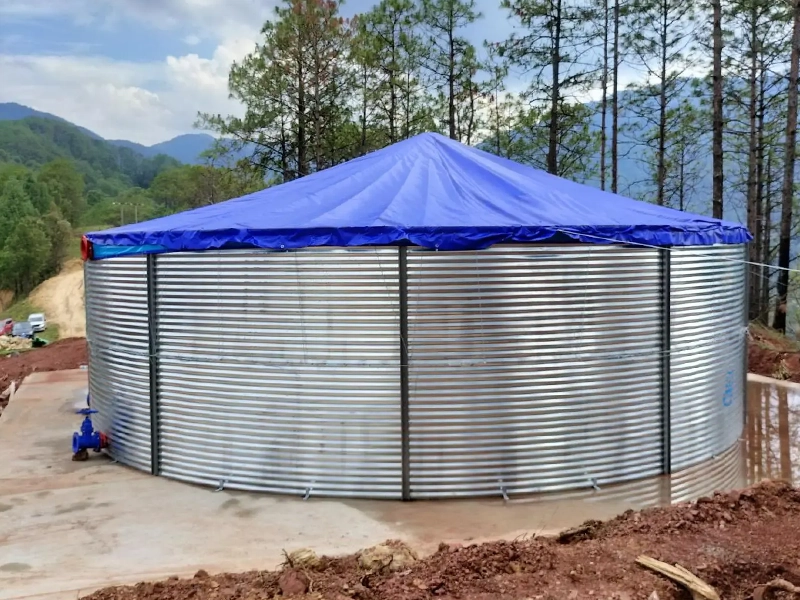

Tank with PVC Cover
A lightweight and economical cover designed to protect stored water from dust, debris and sunlight.

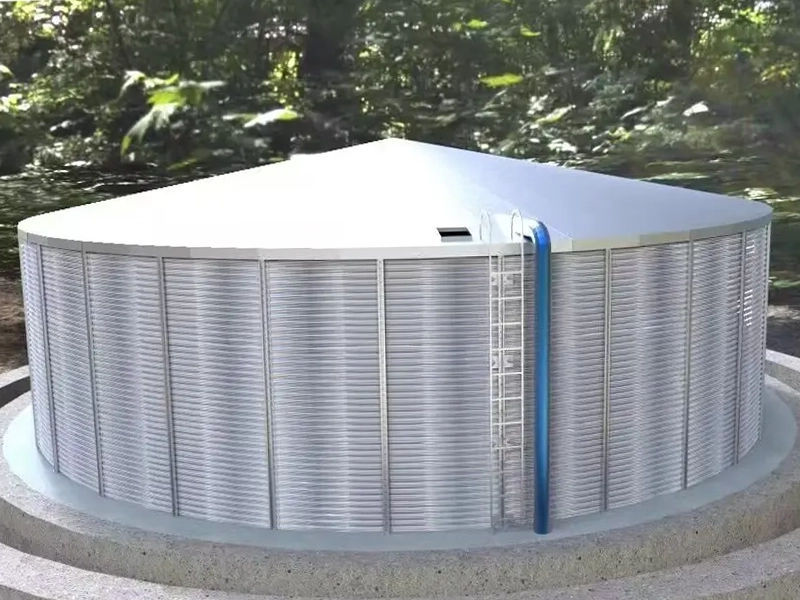

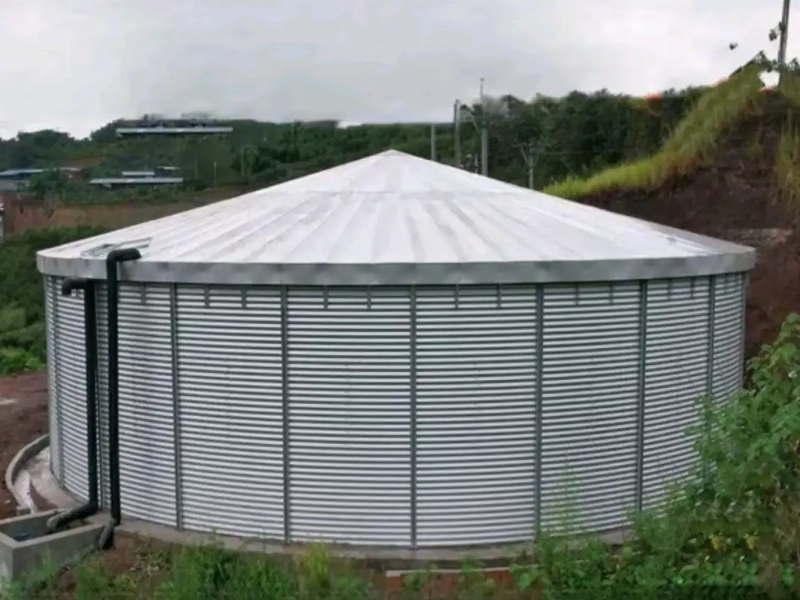

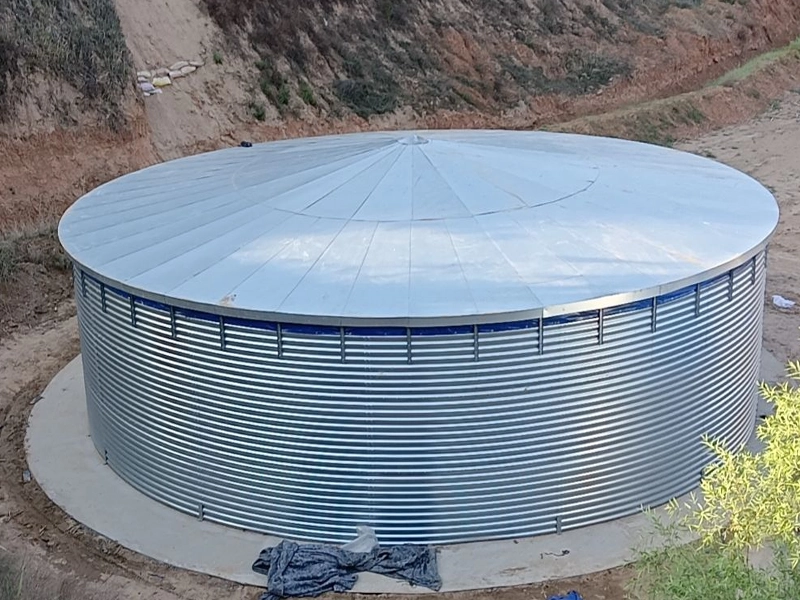

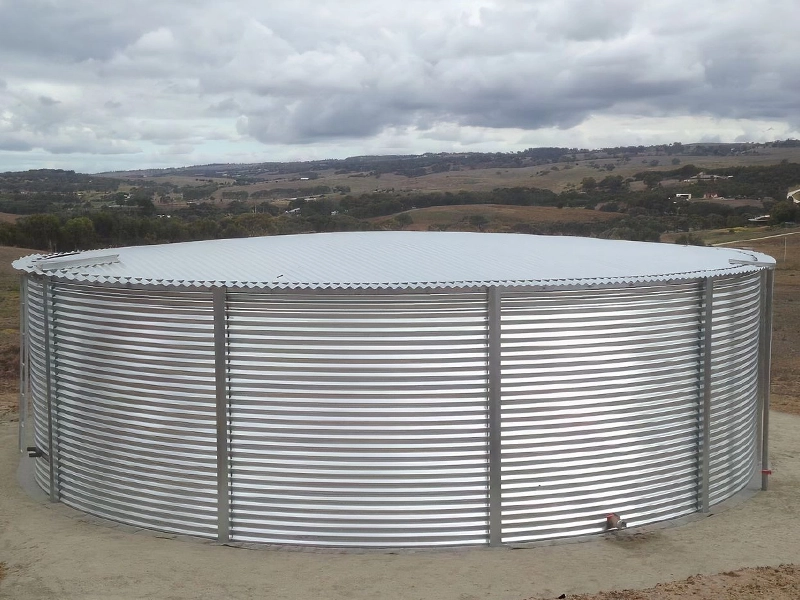

Galvanized Steel Roof
A stronger and more durable cover option for outdoor installations and applications requiring additional protection.

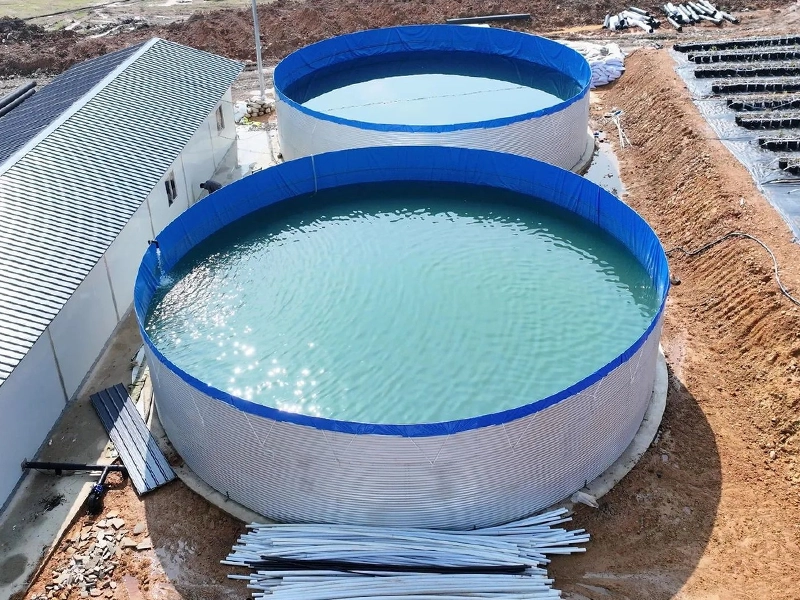

Open Tank
Suitable for applications requiring open-tank water storage and recirculating aquaculture solutions.
Corrugated Steel Water Tank Installation
Size Information
|
Diameter |
Height 0.95 m Capactiy (m3) |
Height 1.15 m Capactiy (m3) |
Height 1.45 m Capactiy (m3) |
Height 1.8 m Capactiy (m3) |
Height 2.2 m
Capactiy (m3) |
Height 2.8 m
Capactiy (m3) |
|---|---|---|---|---|---|---|
| 3 | 7 m³ | 8 m³ | 10 m³ | 13 m³ | 16 m³ | 20 m³ |
| 4 | 12 m³ | 14 m³ | 18 m³ | 23 m³ | 28 m³ | 35 m³ |
| 5 | 19 m³ | 23 m³ | 28 m³ | 35 m³ | 43 m³ | 55 m³ |
| 6 | 27 m³ | 32 m³ | 41 m³ | 51 m³ | 62 m³ | 79 m³ |
| 7 | 37 m³ | 44 m³ | 56 m³ | 69 m³ | 85 m³ | 108 m³ |
| 8 | 48 m³ | 58 m³ | 73 m³ | 90 m³ | 111 m³ | 141 m³ |
| 9 | 60 m³ | 73 m³ | 92 m³ | 114 m³ | 140 m³ | 178 m³ |
| 10 | 75 m³ | 90 m³ | 114 m³ | 141 m³ | 173 m³ | 220 m³ |
| 11 | 90 m³ | 109 m³ | 138 m³ | 171 m³ | 209 m³ | 266 m³ |
| 12 | 107 m³ | 130 m³ | 164 m³ | 203 m³ | 249 m³ | 317 m³ |
| 13 | 126 m³ | 153 m³ | 192 m³ | 239 m³ | 292 m³ | 371 m³ |
| 14 | 146 m³ | 177 m³ | 223 m³ | 277 m³ | 338 m³ | 431 m³ |
| 15 | 168 m³ | 203 m³ | 256 m³ | 318 m³ | 389 m³ | 495 m³ |
| 16 | 190 m³ | 231 m³ | 291 m³ | 362 m³ | 442 m³ | 563 m³ |
| 17 | 216 m³ | 261 m³ | 329 m³ | 408 m³ | 499 m³ | 635 m³ |
| 18 | 242 m³ | 292 m³ | 369 m³ | 458 m³ | 560 m³ | 712 m³ |
| 19 | 269 m³ | 326 m³ | 411 m³ | 510 m³ | 623 m³ | 793 m³ |
| 20 | 298 m³ | 361 m³ | 455 m³ | 565 m³ | 691 m³ | 879 m³ |
| 21 | 329 m³ | 398 m³ | 502 m³ | 623 m³ | 762 m³ | 969 m³ |
| 22 | 361 m³ | 437 m³ | 551 m³ | 684 m³ | 836 m³ | 1064 m³ |
| 23 | 395 m³ | 478 m³ | 602 m³ | 747 m³ | 914 m³ | 1163 m³ |
| 24 | 430 m³ | 520 m³ | 656 m³ | 814 m³ | 995 m³ | 1266 m³ |
| 25 | 466 m³ | 564 m³ | 711 m³ | 883 m³ | 1079 m³ | 1374 m³ |
| 26 | 504 m³ | 610 m³ | 769 m³ | 955 m³ | 1167 m³ | 1486 m³ |
| 27 | 544 m³ | 658 m³ | 830 m³ | 1030 m³ | 1259 m³ | 1602 m³ |
| 28 | 585 m³ | 708 m³ | 892 m³ | 1108 m³ | 1354 m³ | 1723 m³ |
Important note: It is recommended that the maximum diameter does not exceed 30 m and the maximum height does not exceed 5 m. For tanks with steel roofs, the recommended maximum diameter is 18 m.
APPLICATIONS
Agricultural irrigation
Large-volume water storage for farms, plantations and irrigation systems.
Rainwater Harvesting
Collect and store rainwater for agricultural, commercial and emergency use.
Aquaculture
Suitable for fish and shrimp farming where an open-top tank configuration may be required.
Industrial Water Storage
Suitable for process water, raw water and general industrial water storage.
Firefighting Water
Used as a dedicated fire water storage tank for commercial and industrial facilities.
Emergency Water Supply
Provides temporary or permanent water storage for remote and emergency projects.
Why Choose GOOYI?
GOOYI mainly manufactures water tanks and supplies modular water storage systems directly to global customers.
Large Capacity Solutions
We provide galvanized corrugated steel tanks from small storage systems to large-volume projects.
Complete Tank System
Tank panels, liner, bolts, accessories, roof and installation components can be supplied as a complete system.
Easy Transportation
The sectional design allows tank components to be packed efficiently and transported to the project site.
Engineering Support
GOOYI can provide tank dimensions, technical drawings, component specifications and installation guidance.
Global Water Tank Cases

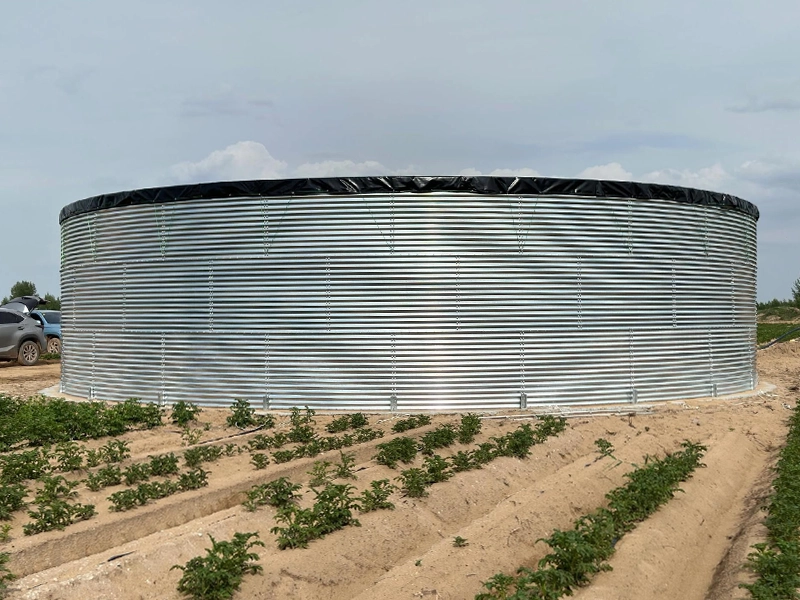

Integrated Water and Fertilizer Project

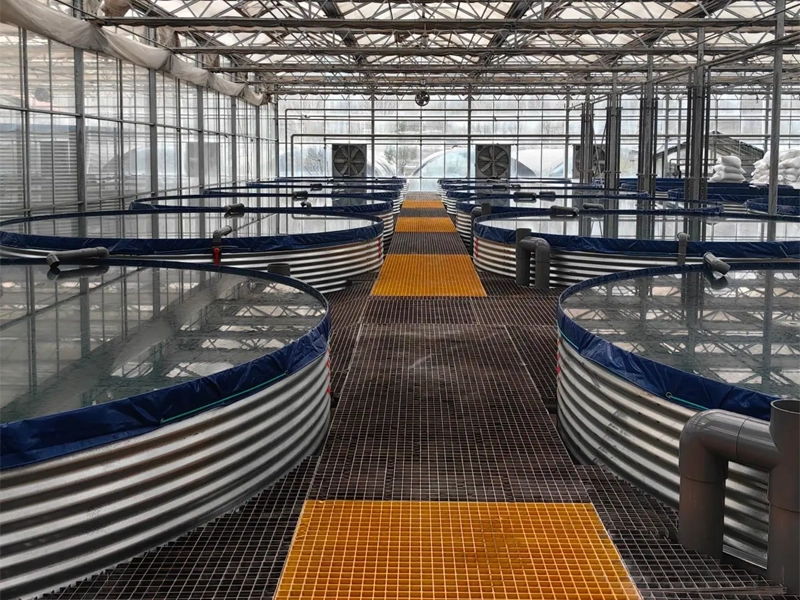

Aquaculture Project

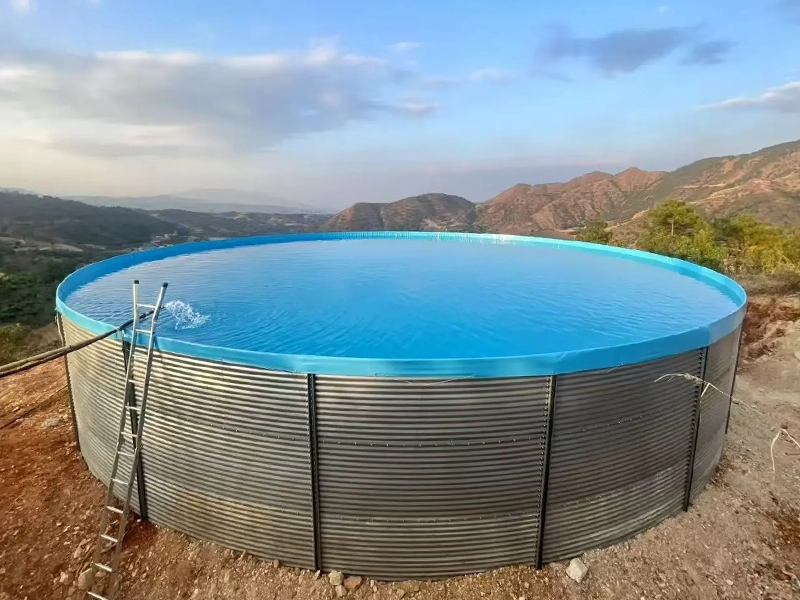

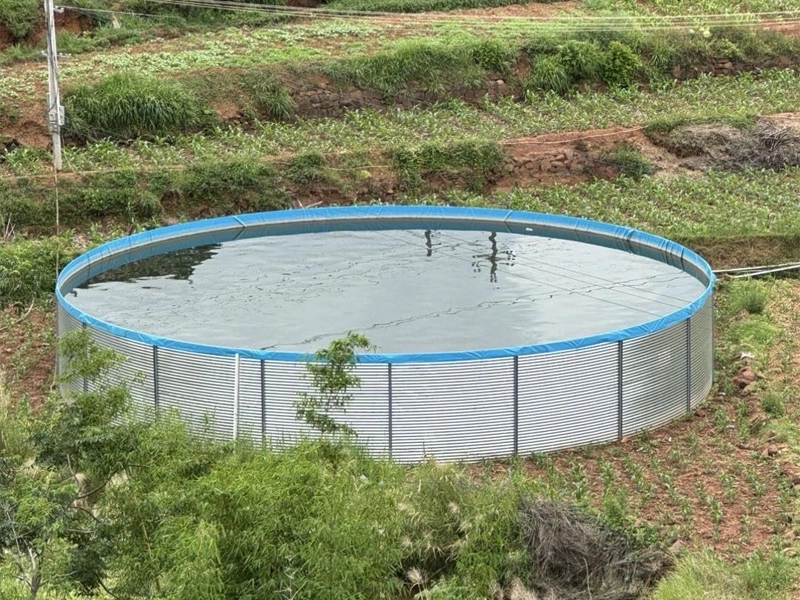

Agricultural Irrigation Project

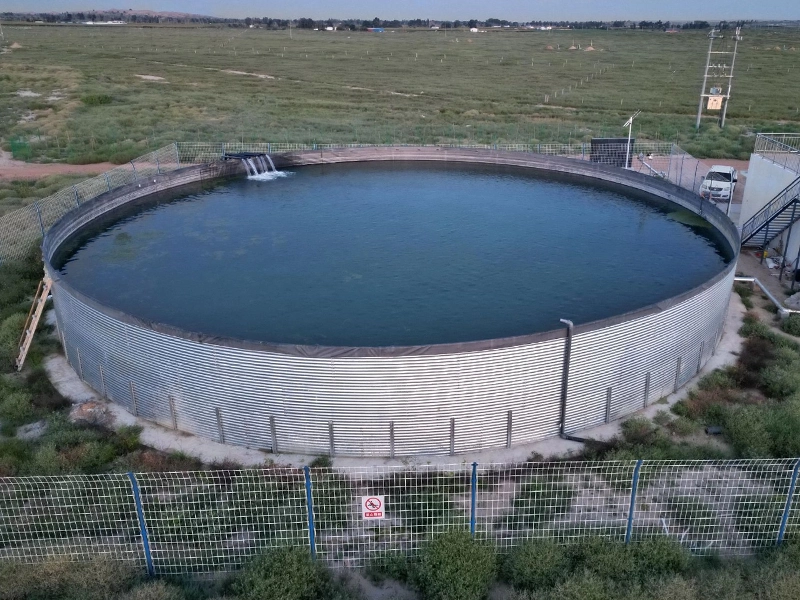

Industrial Water Storage Project
