GRP Water Tank Manufacturer
Professional Manufacturer of Modular GRP Sectional Water Tanks
Durable • Corrosion Resistant • Easy Installation • Long Service Life
Product Overview
Modular GRP Sectional Water Tank
GRP water tank is a modular panel-type water storage solution designed for projects where durability, corrosion resistance, hygiene, installation efficiency and flexible capacity are important.Unlike conventional welded steel tanks, the sectional GRP tank is assembled from individual panels on site. This makes transportation easier and allows the tank dimensions and capacity to be customized for different project requirements.
Advantages of GRP Water Tank
High resistance against rust, chemicals and harsh environments.
Suitable for coastal and industrial areas.
Smooth inner surface prevents bacteria growth and contamination.
Suitable for potable water applications.
Bolted panel structure allows easy transportation and installation.
Tank dimensions can be designed according to project requirements.
Durable SMC panels provide reliable performance for decades.
Individual panels can be replaced without dismantling the entire tank.

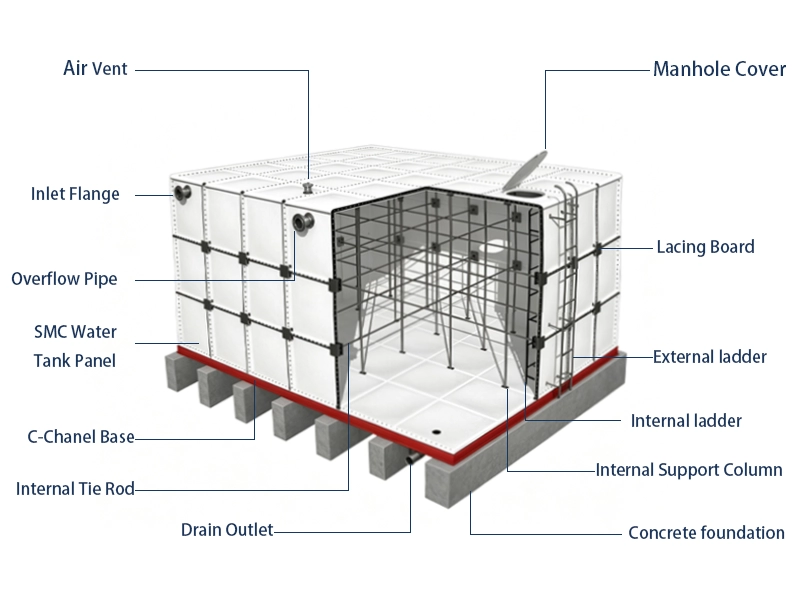

GRP Water Tank Structure
Our GRP water tank is manufactured from premium SMC roof, side, and bottom panels, reinforced with an internal support system, stainless steel or hot-dip galvanized tie rods, EPDM sealing gaskets, and high-strength bolted connections. The modular sectional design provides superior structural strength, excellent corrosion resistance, leak-proof performance, and quick installation, making it an ideal solution for potable water, fire protection, commercial, and industrial water storage applications.
- 1. Air Vent
- 2. Manhole
- 3. Inlet Flange
- 4. Overflow Flange
- 5. SMC/GRP Tank Panel
- 6. C-Channel Base
- 7. Drain Flange
- 8. EPDM Sealing Strip
- 9. External Ladder
- 10. Lacing Bar Board
- 11. nternal Vertical Support Rod
- 12. nternal Vertical Support Rod
- 13. Manhole
GRP WATER TANK
Technical Highlights
✓ SMC/GRP Modular Panels
✓ HDG / SS304 / SS316 Supports
✓ EPDM Sealing System
✓ High-Strength Bolted Connection
✓ 1–5000 m³ Capacity
✓ Customized Dimensions
Applications
Potable Water · Fire Fighting · Commercial · Industrial

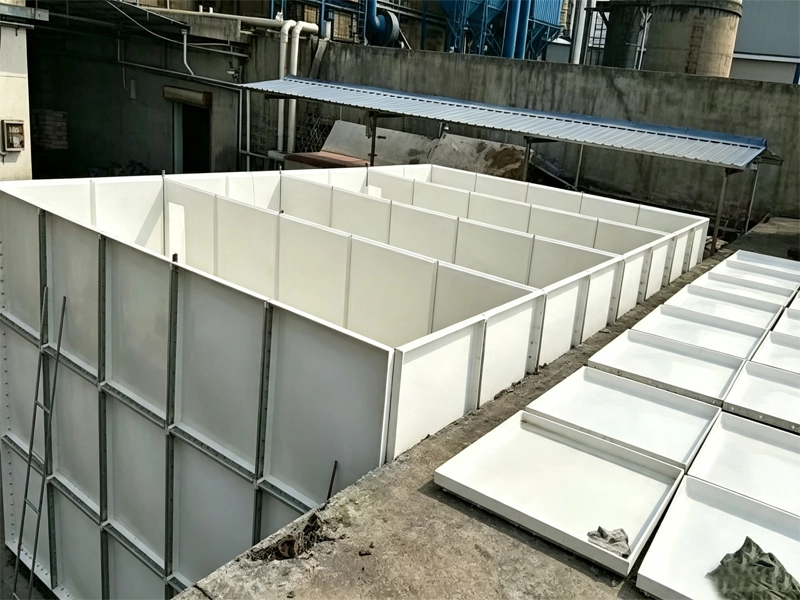

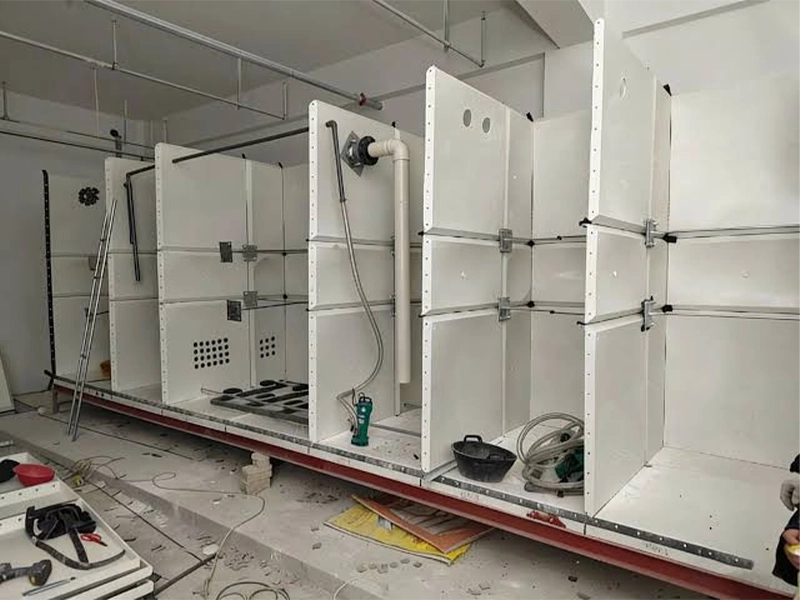

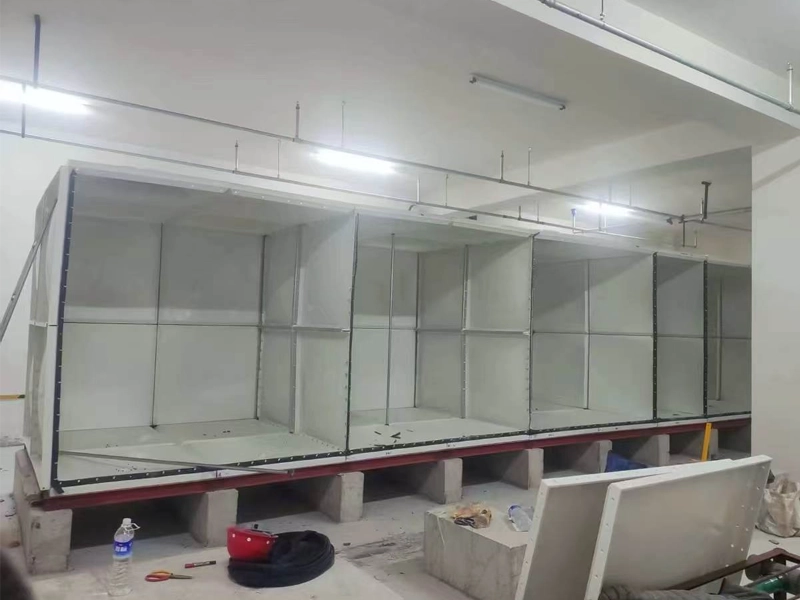

Multi-Compartment Design for GRP Water Tank
01 — Internal Partition
Flexible internal partition panels for separate water compartments.
02 — Large Multi-Compartment Tank
Customized sectional design for large-capacity water storage.
03 — Modular Compartment System
Bolted GRP panels enable flexible compartment configuration.
GRP sectional water tanks can be designed with internal partition panels to create multiple independent storage compartments. This flexible configuration allows different water zones to be managed separately while improving maintenance access, operational flexibility, and space utilization.
GRP water tank specifications
| GRP Water Tank Height | GRP Water Tank Panel Thickness (mm) | |||||
| Bottom | Side 1st | Side 2nd | Side 3rd | Side 4th | Top panel thk | |
| 1m | 7mm | 7mm | 4/5mm | |||
| 1.5m | 8mm | 8mm | 7mm | 4/5mm | ||
| 2m | 8mm | 8mm | 7mm | 4/5mm | ||
| 2.5m | 10mm | 10mm | 8mm | 7mm | 4/5mm | |
| 3m | 12mm | 10mm | 8mm | 7mm | 4/5mm | |
| 3.5m | 14mm | 12mm | 10mm | 8mm | 7mm | 4/5mm |
| 4m | 16mm | 14mm | 12mm | 10mm | 8mm | 4/5mm |
GRP Water Tank Panel Weight |
|||||||||
| Panel Type | 20# | 18# | 16# | 14# | 12# | 10# | 8# | 5# | 4# |
| Round Design | 40kg | 36kg | 32kg | 28kg | 24kg | 21kg | 18kg | 13kg | 11.5kg |
| Square Design | / | / | 34kg | 31kg | 26kg | 22kg | 18kg | 13kg | / |
GRP Water Tank Panel Properties |
|||||
| Tensile Strength | Bending Strength | Bending modulus | Pap hardness | Bibulous rate | Glassfiber Content |
| ≥60 Mpa | ≥100 Mpa | ≥7GPa | ≥60 HBa | ≤1.0% | ≥25% |

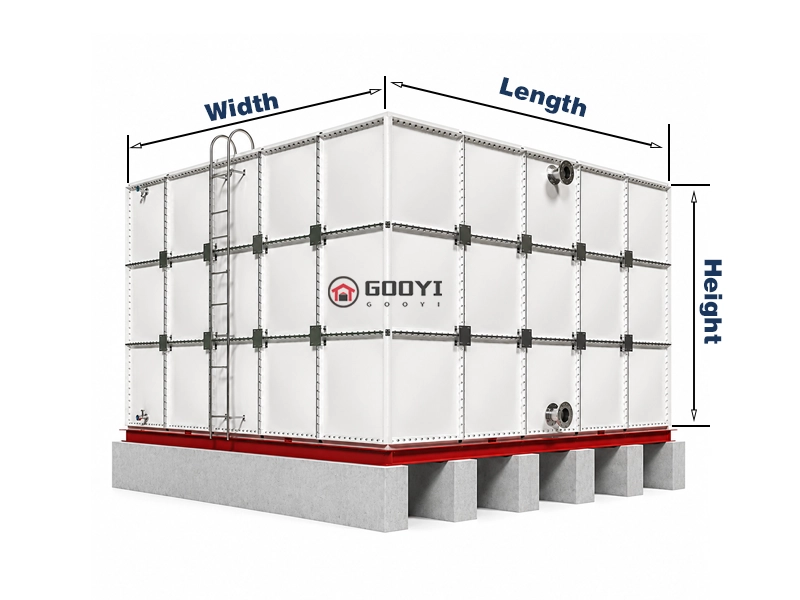

GRP Water Tank Capacity Calculator
Calculate the required water storage capacity by entering tank dimensions.
Calculation Result
Tank Size: -
Capacity: 0 m³
Water Storage: 0 Liters
GRP Sectional Water Tank
Note：GRP water tanks are assembled from modular panels in standard sizes: 1×1 m, 1×1.5 m, 1×0.5 m, and 0.5×0.5 m. Flexible panel combinations allow customized tank dimensions to meet different project requirements.
GRP Water Tank Accessories & Components
| Component | Specification | Component | Specification |
|---|---|---|---|
| GRP/SMC Panels | Standard panel sizes: 1000×1000mm, 1000×500mm, 500×500mm. Thickness available: 4mm, 5mm, 8mm, 10mm, 12mm, 14mm, 16mm. Food-grade and high-strength SMC material. | Bolts, Nuts & Washers | High tensile Hot-Dip Galvanized, SS304, or SS316 bolts and washers. Designed for corrosion resistance and secure assembly. |
| Base Steel Frame | C-Channel Steel (10# or 12#). Surface treatment: Hot-Dip Galvanized or Epoxy Painted. Provides stable foundation support. | Internal Support Structure | Internal tie rods, support rods and reinforcement plates. Available in Hot-Dip Galvanized Steel, SS304, or SS316. |
| Flanges | Inlet, outlet, overflow, drain and vent flanges. Material: Hot-Dip Galvanized Steel, SS304, or SS316. Custom sizes available. | EPDM Sealing Rubber | Food-grade White EPDM Rubber or Silicone Gasket. Excellent sealing performance with long service life. |
| Ladder | Internal or external ladder for tanks over 1.5m height. Material: Galvanized Steel or Stainless Steel. | Water Level Indicator | Transparent glass tube or float type level indicator with brass valve. Easy water level monitoring. |
| Manhole Cover | Standard inspection hatch size: 600×600mm. Lockable design. Customized dimensions available. |

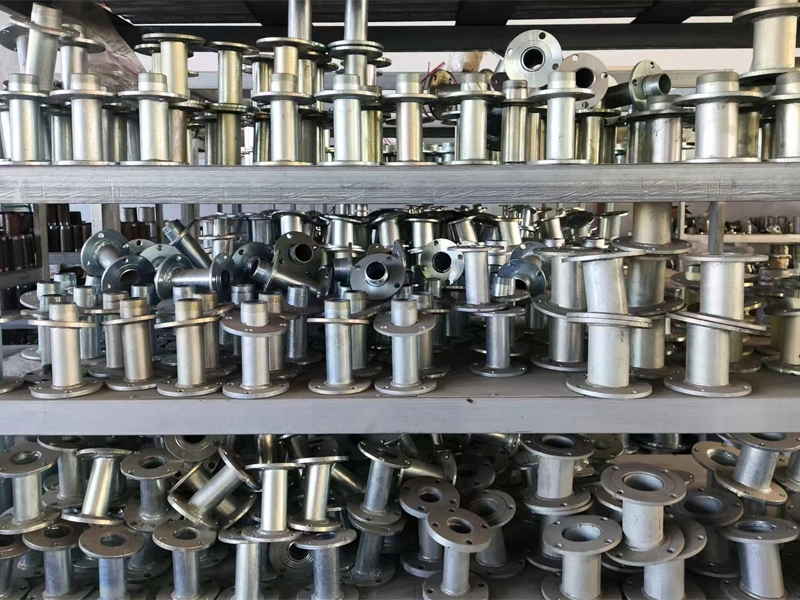

Connection Flange

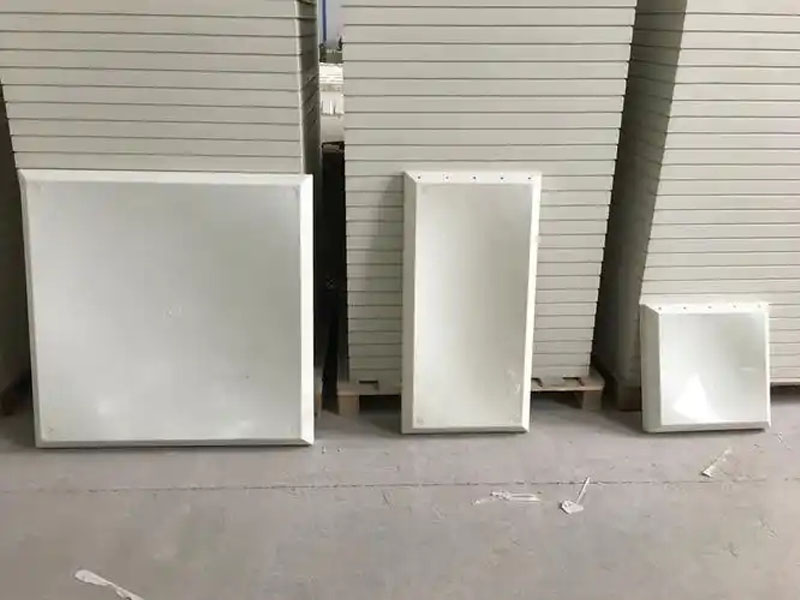

GRP Water Tank Panel

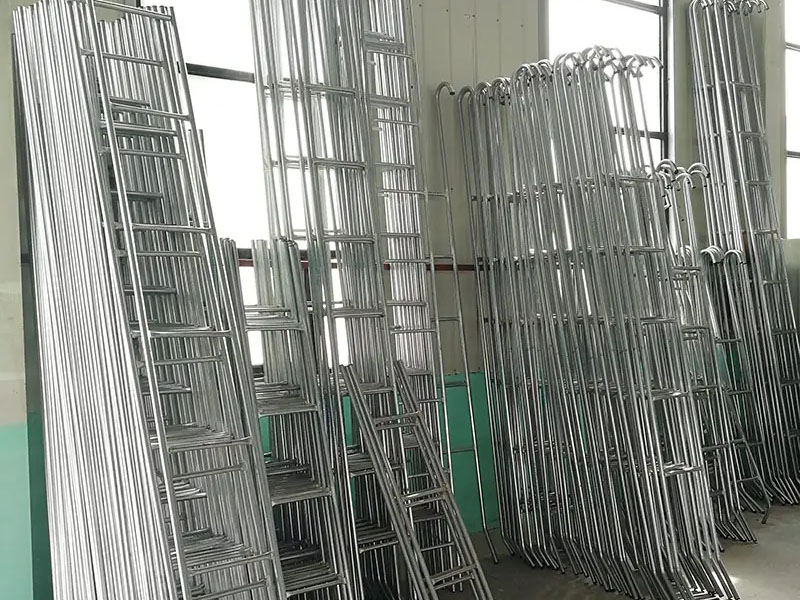

Ladder

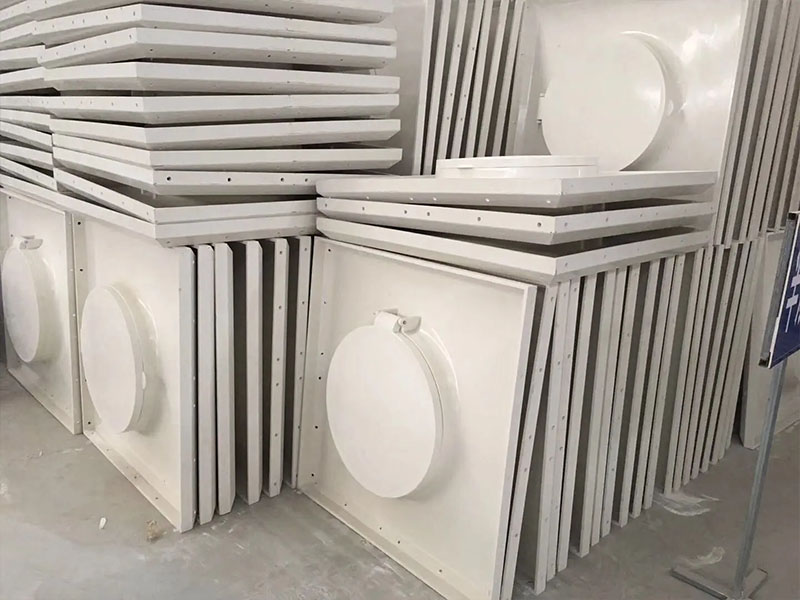

Manhole cover

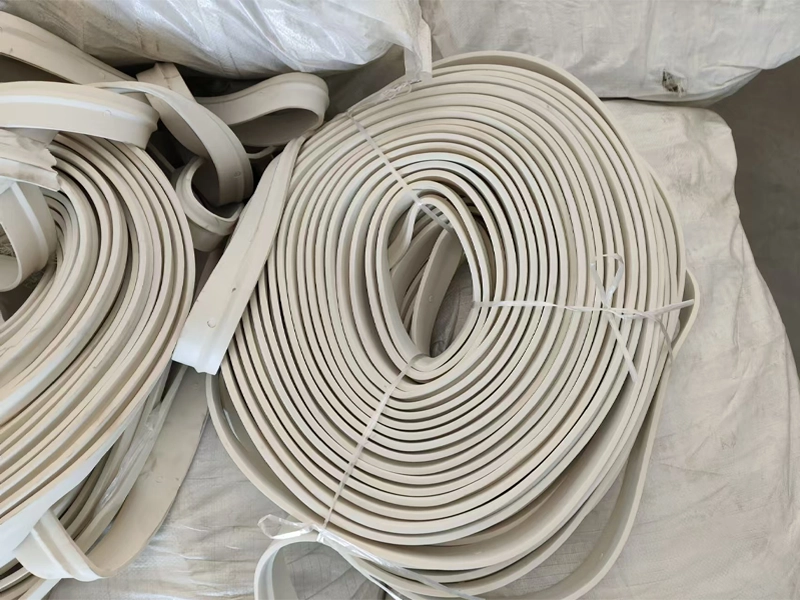

EPDM Sealing Strip
Lacing Bar
Vertical Steel Support Rod

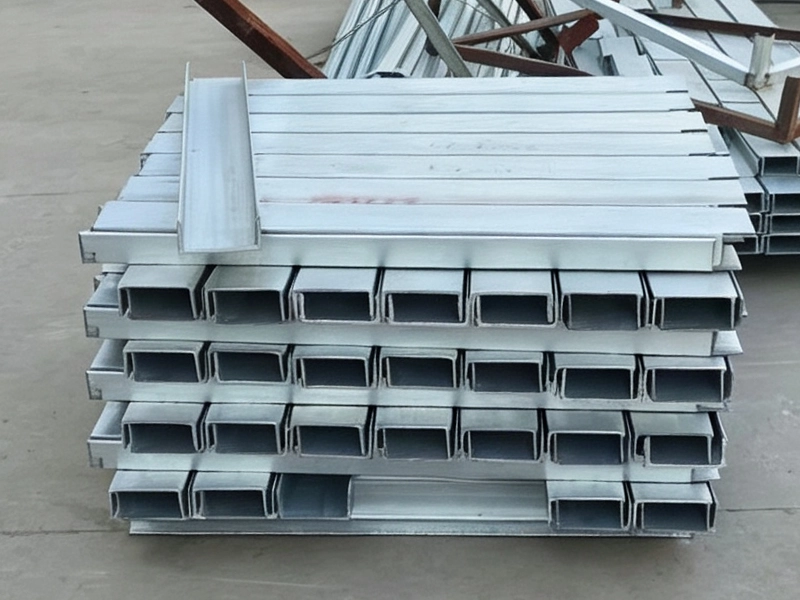

C-channel base

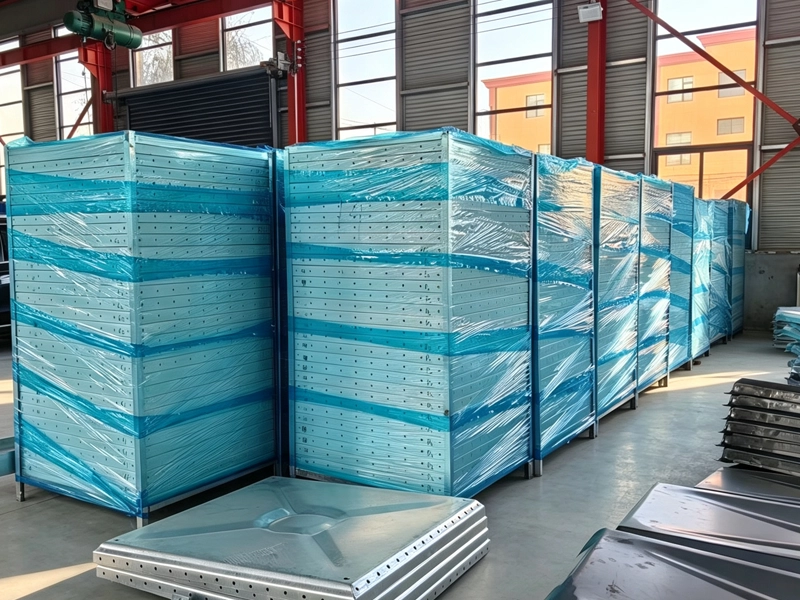

Packaging & Shipping
To ensure the safety of water tanks during long-distance transportation, all tank panels and accessories are professionally packed according to international export standards. Each component is carefully protected to prevent damage, scratches, and deformation during handling and shipping.
GRP Water Tank Installation Process

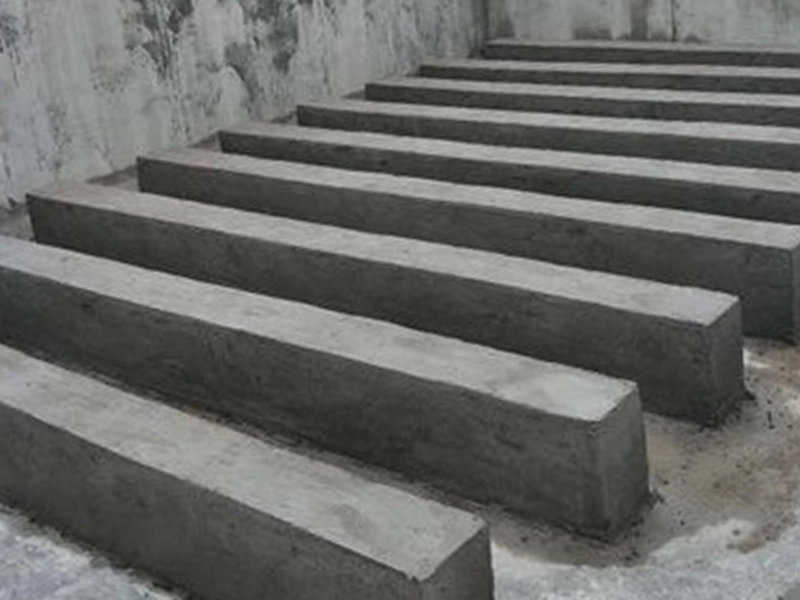

1. Foundation Preparation
Prepare a level and strong concrete foundation according to the approved tank drawings and dimensions. Check the foundation level, dimensions and load-bearing capacity before installation.ements.

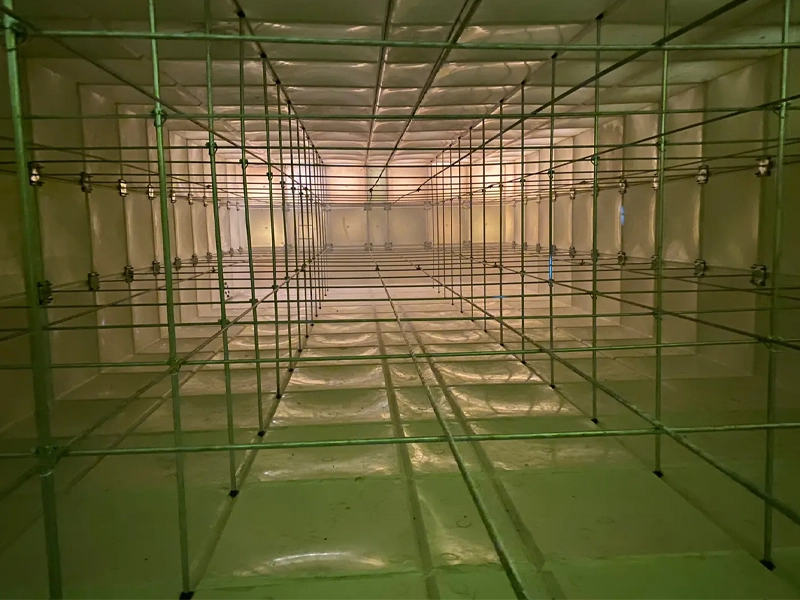

5.Install Internal Supports
Install internal tie rods, stay plates and supporting components according to the structural drawings. The reinforcement system helps maintain the tank shape and provides additional stability when the tank is filled with water.

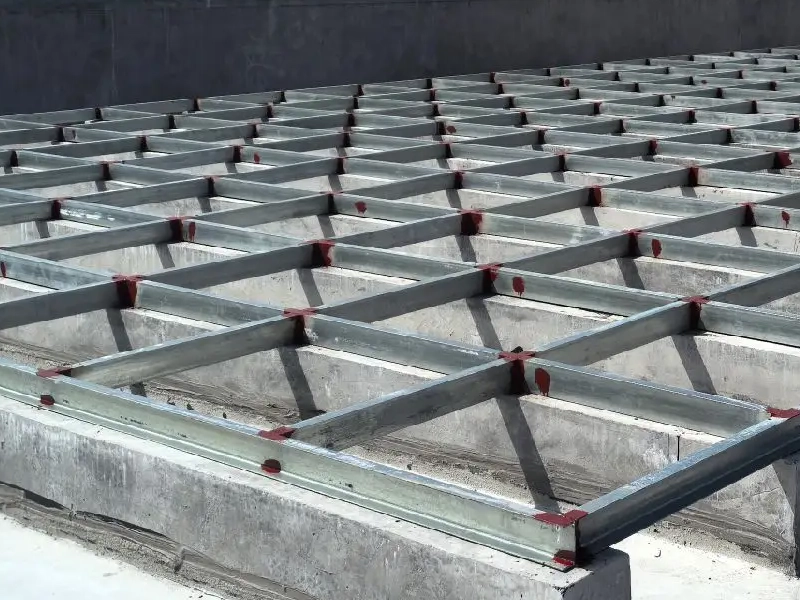

2.Install the Base Frame
Install the galvanized steel C-channel base frame on the concrete foundation. Adjust and align the frame carefully to provide a stable and level support for the GRP bottom panels.

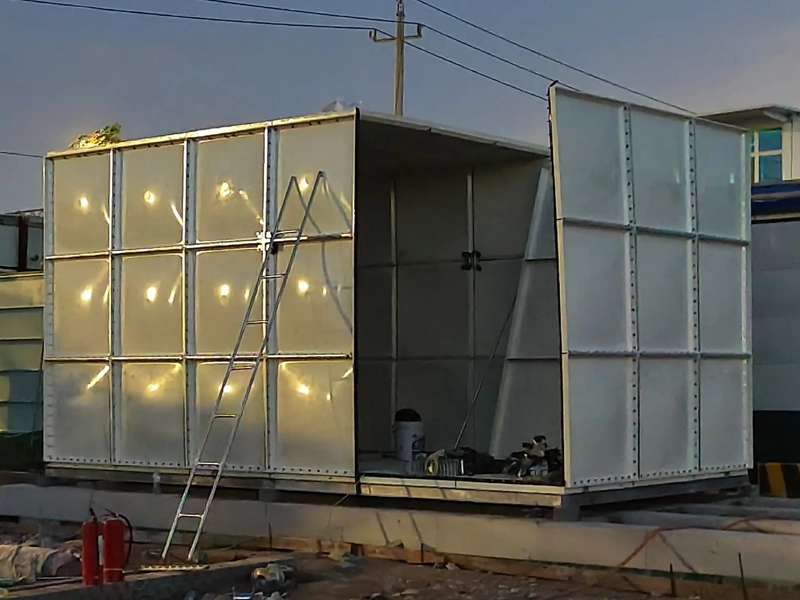

6.Install Roof Panels & Accessories
After completing the side walls and internal reinforcement, install the GRP roof panels. Then install the manhole, ladder, air vent, water level indicator and other required accessories.

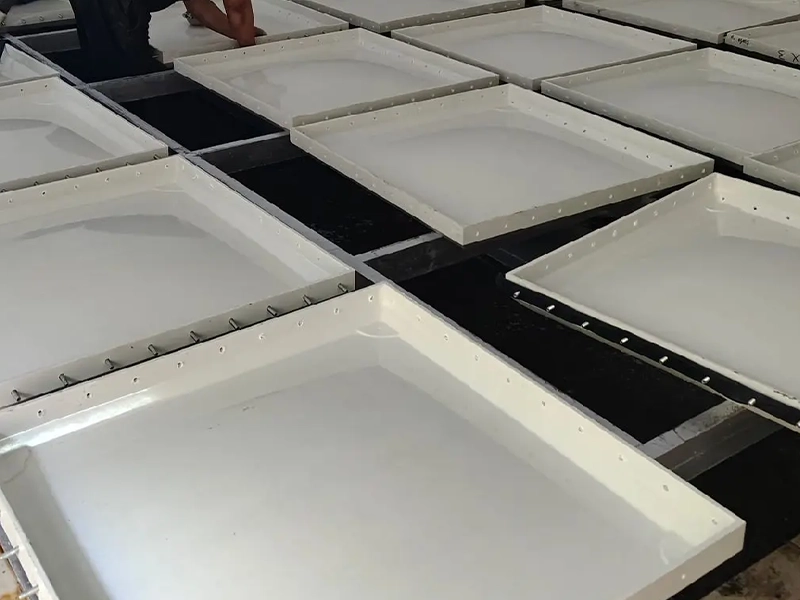

3. Install the Bottom Panels
Place the GRP/SMC bottom panels onto the support frame according to the approved layout drawing. Install sealing strips between the panel flanges before bolting the panels together.

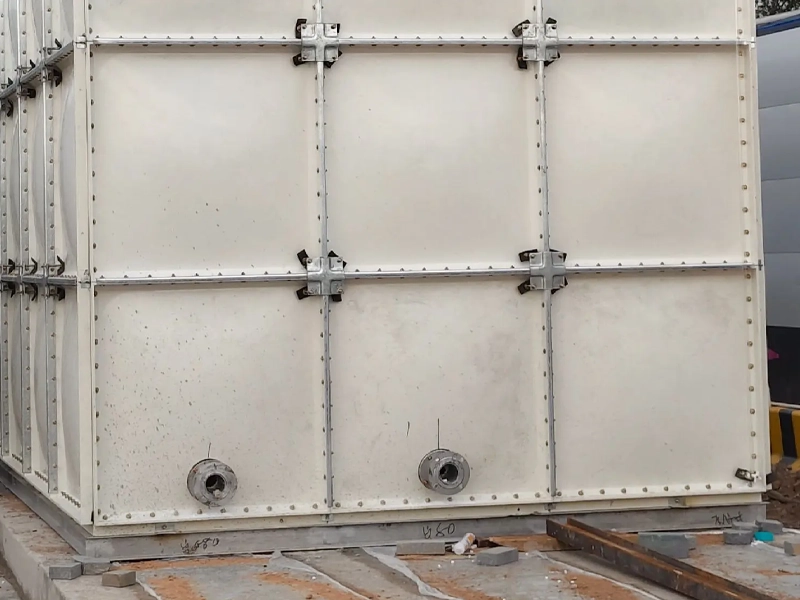

7.Installation connection flange
Connect the inlet, outlet, drain and overflow pipes according to the approved piping drawings. Inspect all panel joints, bolts, sealing strips, flanges and internal supports before testing.

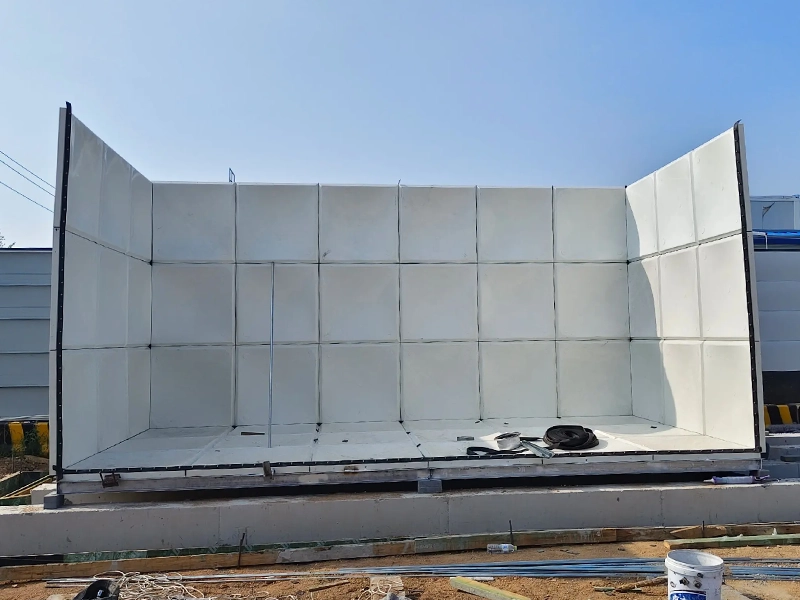

4.Assemble the Side Panels
Install the GRP side panels layer by layer around the tank. Connect adjacent panels using bolts, nuts and sealing strips.For larger or taller tanks, internal reinforcement should be installed according to the tank design .

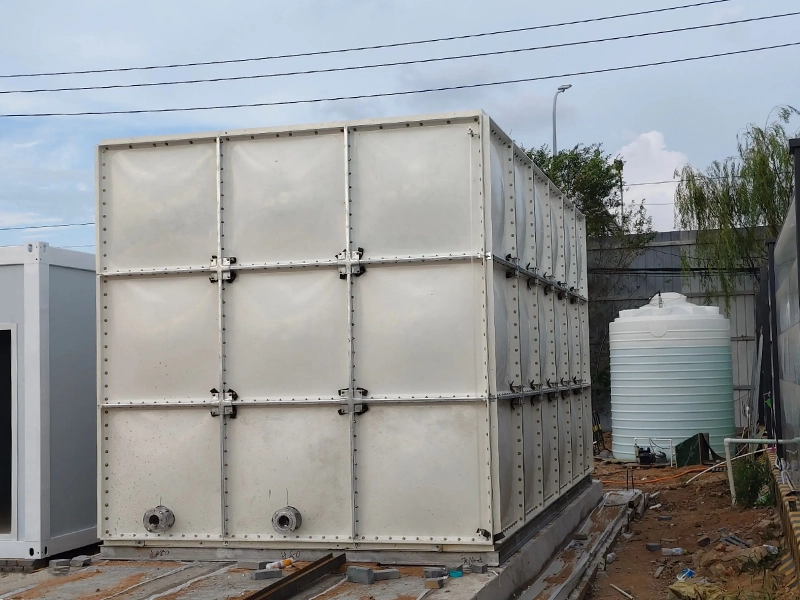

8.Water Filling & Leakage Test
After installation is completed, gradually fill the tank with clean water and inspect all panel joints and connections for leakage. Keep the tank filled for the specified testing period and repair any leakage before final acceptance.
Global GRP Water Tank Projects

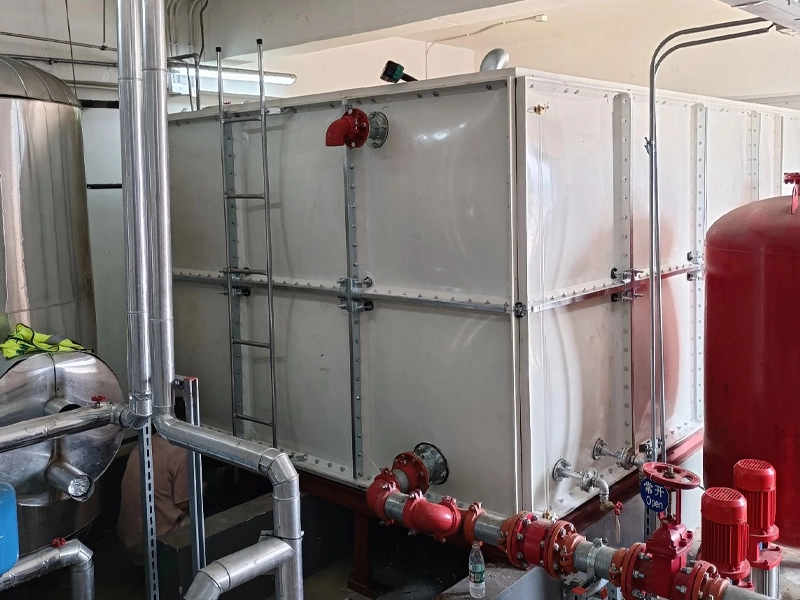

Location：Qatar
Product：GRP Fire Water Tank
Size：5X3X2
Application: Fire Protection System

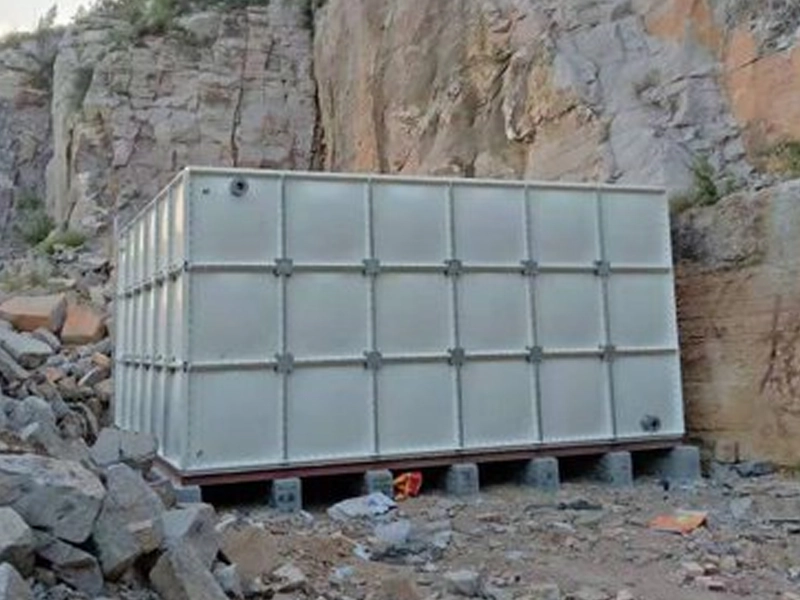

Location：South Africa
Product：GRP Water Storage System
Size：6X6X3
Application:Mining & Industrial Use

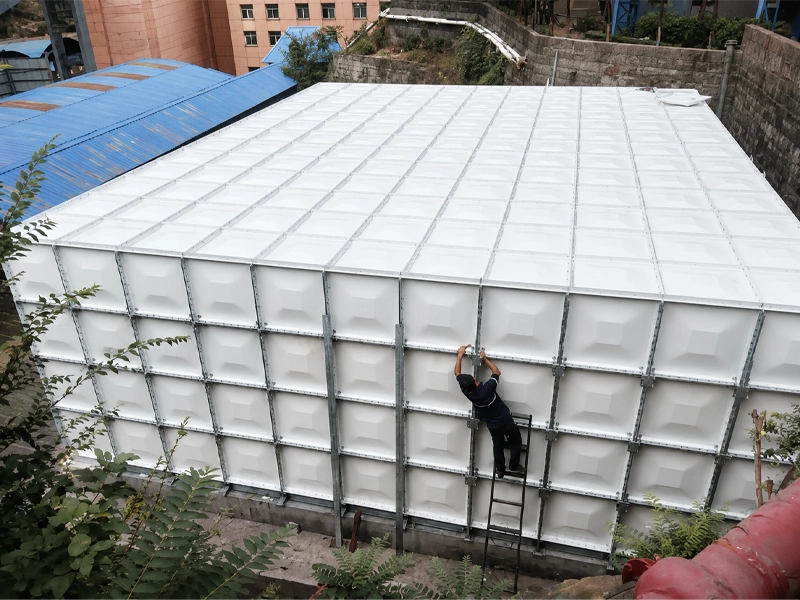

Location：Malaysia
Product：FRP Sectional Tank
Size：13x11x4
Application:Industrial Water Storage

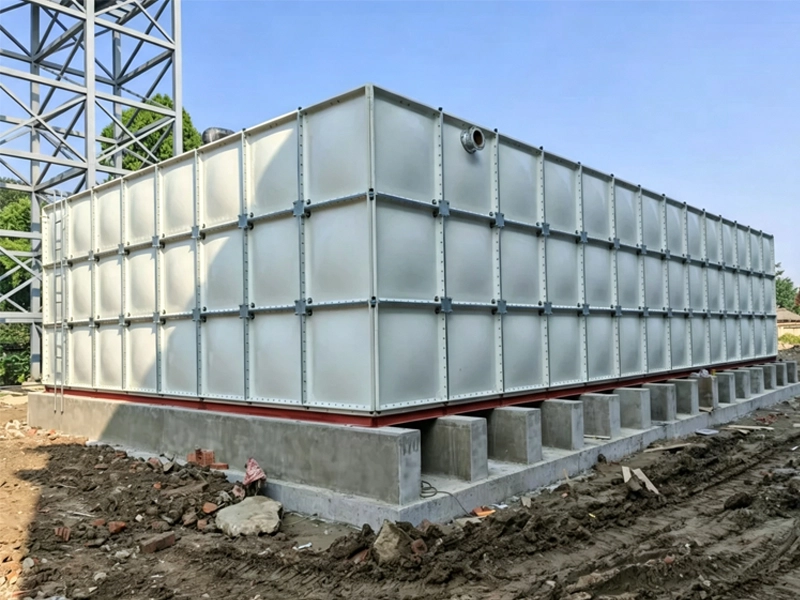

Location：Middle East
Product：GRP Sectional Water Tank
Size：14X8X3
Application:Domestic Water Storage

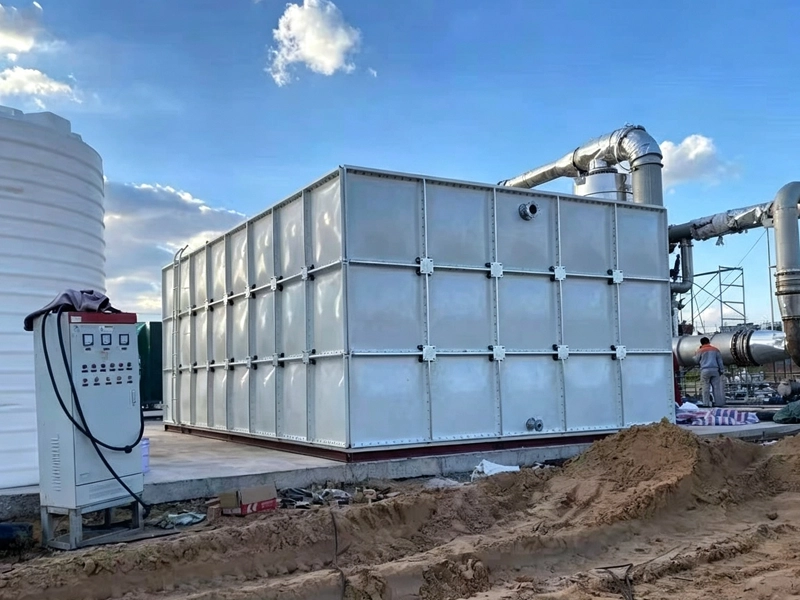

Location：Indonesia
Product：SMC Panel Water Tank
Size：8x5x3
Application: Industrial Water Supply

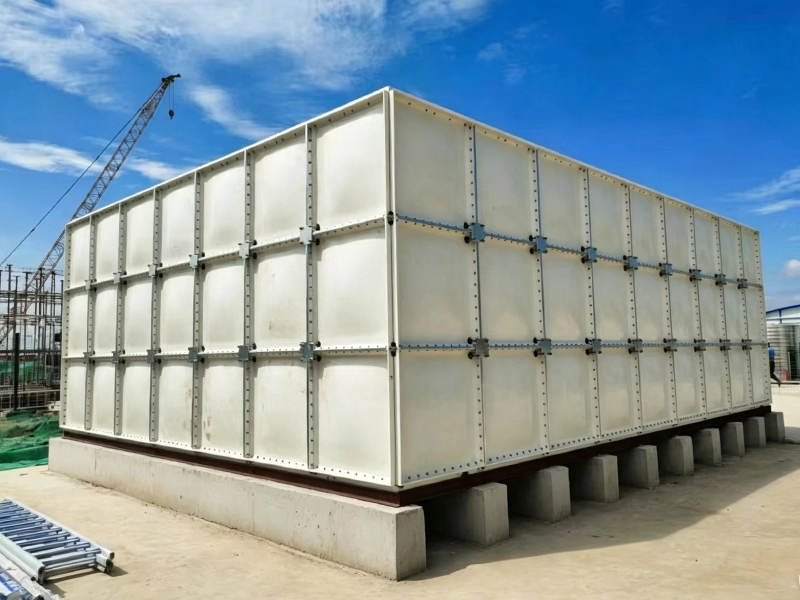

Location：Nigeria
Product：Modular GRP Water Tank
Size：9X7X3
Application: Construction Water Supply
