Stainless Steel Water Tanks
GOOYI manufactures modular stainless steel bolted water tanks for drinking water, fire protection, industrial, commercial and municipal water storage projects.
SS304 / SS316 | Modular Bolted Design | Factory Direct | Global Supply
Stainless Steel Bolted Water Tank
GOOYI supplies stainless steel sectional water tanks designed for reliable water storage in commercial, industrial and municipal applications.
The tanks are manufactured from SS304 or SS316 stainless steel panels and assembled on site using high-strength bolts, sealing gaskets and internal and external reinforcement systems.
The modular bolted structure simplifies transportation, installation and maintenance, making the tanks suitable for a wide range of water storage projects.
Key Features
Stainless steel panels provide excellent corrosion resistance and are suitable for potable water and general water storage applications.
Internal tie rods, external bracing and reinforced base structures provide stability for different tank sizes and configurations.
The sectional design allows the tank to be transported as compact components and assembled efficiently at the project site.
The bolted panel structure reduces transportation volume compared with factory-assembled tanks.
Smooth stainless steel surfaces and sealed panel joints help maintain a clean and hygienic water storage environment.
Stainless steel construction provides reliable durability for indoor and outdoor water storage applications.
| Item | Specification |
|---|---|
| Tank Type | Sectional Bolted Water Tank |
| Material | SS304 / SS316 |
| Panel Connection | Bolted |
| Panel Thickness | According to tank design |
| Sealing | EPDM / Food-grade sealing gasket |
| Bolts & Nuts | SS304 / SS316 |
| Internal Tie Rods | SS304 / SS316 |
| External Bracing | Stainless Steel |
| Base Frame | Stainless Steel / Hot-Dip Galvanized Steel |
| Manhole | Stainless Steel |
| Flanges | Stainless Steel |
| Ladder | Stainless Steel |
| Application | Drinking Water, Firefighting, Industrial, Commercial, Municipal |

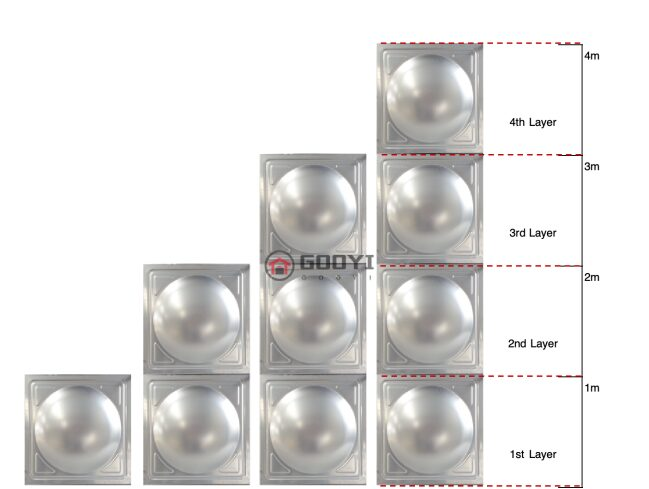

Stainless Steel Water Tank Structure
Panel thickness and reinforcement configuration should be determined according to tank dimensions, water pressure and project requirements.
Technical Specifications
| Height | Thickness of SS Panel (mm) | ||||||
| (mm) | Bottom | 1st layer side | 2nd layer side | 3rd layer side | 4th layer side | 5th layer side | Top |
| 1000 | 2.5# | 1.5# | / | / | / | / | 1.5# |
| 1500 | 2.5# | 1.5# | 1.5# | / | / | / | 1.5# |
| 2000 | 2.5# | 2# | 1.5# | 1.5# | / | / | 1.5# |
| 2500 | 3# | 2.5# | 2# | 1.5# | / | / | 1.5# |
| 3000 | 3# | 2.5# | 2# | 1.5# | / | / | 1.5# |
| 3500 | 3# | 3# | 2.5# | 2# | 1.5# | / | 1.5# |
| 4000 | 4# | 3# | 2.5# | 2# | 1.5# | / | 1.5# |
| 5000 | 4# | 3# | 3# | 2.5# | 2# | 1.5# | 1.5# |
Performance of SS Panels
| Item | Properties |
| Tensile Strength | ≥515 MPa |
| Yield Strength | ≥205 MPa |
| Elongation | ≥40% |
| Hardness | ≤92 HRBS |

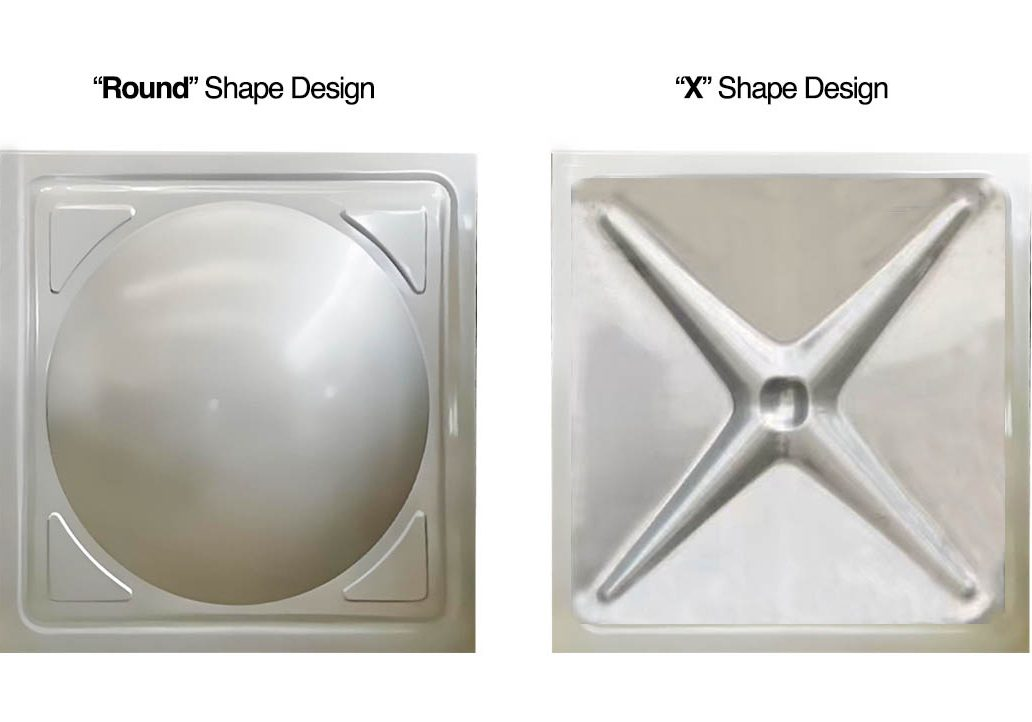

GOOYI stainless steel water tanks feature a modular panel structure, allowing for flexible assembly. There are two panel designs available.
| Specification | Details |
|---|---|
| Material | SS304 / SS316 Stainless Steel |
| Panel Type | Pressed & Reinforced Stainless Steel Panels |
| Connection Method | Bolted Modular Assembly / Welded Assembly |
| Surface Finish | Smooth, Hygienic & Easy to Clean |
| Panel Dimensions | 1,000 × 1,000 mm / 1,000 × 500 mm / 500 × 500 mm |
- Welded Type: Stainless steel panels are welded together to form a strong, seamless and durable tank structure.
- Bolted Type: Stainless steel panels are assembled with high-strength bolts and EPDM gaskets for convenient transportation and on-site installation.
Why Choose GOOYI
Global Project Supply
GOOYI supplies water storage tanks for distributors, contractors, EPC companies and engineering projects.
SS304 & SS316 Options
Different stainless steel grades are available according to the water quality, c'cenvironment and project requirements.
Complete Water Tank System
We supply tank panels together with bolts, gaskets, supports, flanges, manholes, ladders and other components.
Engineering Support
Technical specifications, tank dimensions, component information and installation documentation can be provided for project evaluation.
Applications
Firefighting Water Storage
Dedicated fire water storage for commercial buildings, factories, warehouses and infrastructure projects.
Commercial Buildings
Used in hotels, hospitals, schools, offices and other commercial facilities.
Potable Water Storage
Stainless steel water tanks for drinking water storage in buildings, facilities and water supply systems.
Municipal Water Storage
Suitable for water treatment plants, municipal water supply and infrastructure projects.
Industrial Water Storage
Suitable for process water, raw water and general industrial water storage.
Emergency Water Storage
Provides additional water storage for backup and emergency water supply systems.
