Product Overview

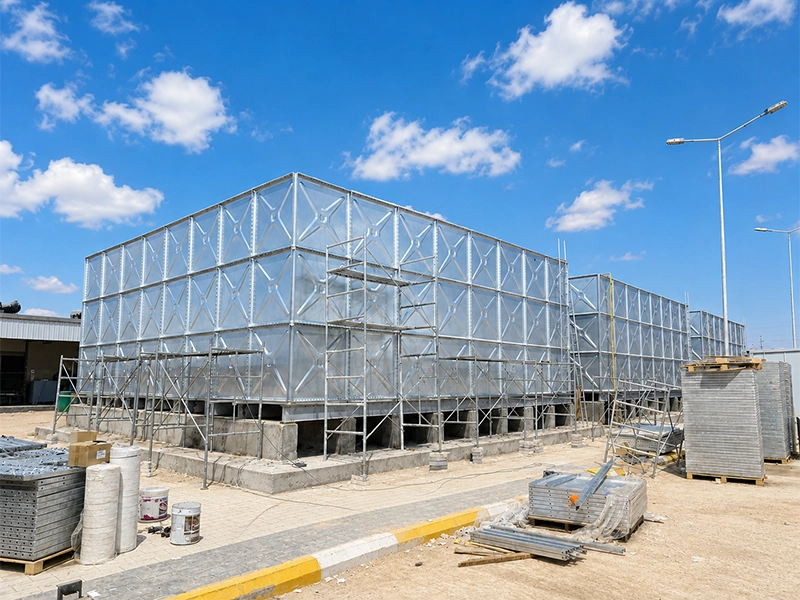

Hot Dip Galvanized Steel Water Tank
GOOYI supplies modular hot dip galvanized steel water tanks for water storage projects worldwide. Manufactured from Q235 carbon steel panels with a hot-dip galvanized coating, our tanks offer reliable corrosion resistance and long-term durability. The bolted sectional design allows for compact transportation and efficient on-site assembly, making the tanks suitable for a wide range of commercial, industrial, municipal, and fire water storage applications.
Strong structural performance
Easy transportation & installation
Enhanced corrosion resistance
Wide capacity range
Key Features
Modular Galvanized Steel Water Tank Structure

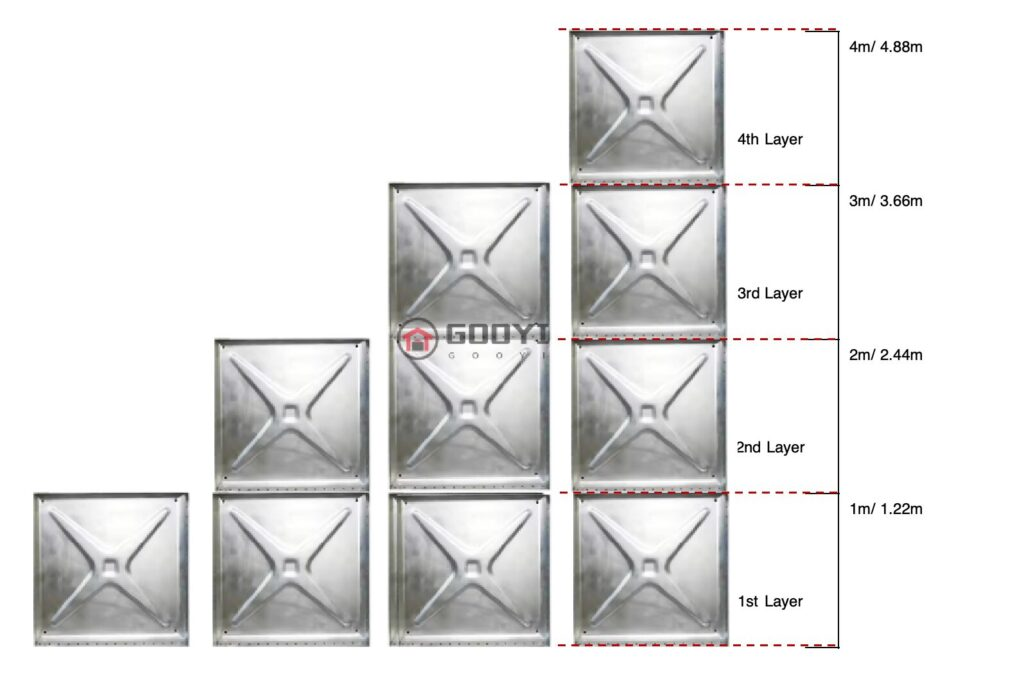

Technical Specifications for Hot-Dip Galvanized Water Tanks
| HDG Water Tank Panel Thickness (mm) | ||||||
| Height | Bottom Panel | 1st Layer | 2nd Layer | 3rd Layer | 4th Layer | Cover Panel |
| 1.0 M | 3 mm | 3 mm | 2 mm | |||
| 1.5 M | 3 mm | 3 mm | 3 mm | 2 mm | ||
| 2.0 M | 3 mm | 3 mm | 3 mm | 2 mm | ||
| 2.5 M | 4 mm | 4 mm | 3 mm | 3 mm | 2 mm | |
| 3.0 M | 4 mm | 4 mm | 3 mm | 3 mm | 2 mm | |
| 3.5 M | 4 mm | 4 mm | 3 mm | 3 mm | 2.5mm | 2 mm |
| 4.0 M | 5 mm | 5 mm | 4 mm | 3 mm | 2.5mm | 2 mm |
|
HDG Water Tank Panel Properties (GB/T 2518-2008) |
||||
| Tensile | Yield | Elongation | Hardness(HB) | Impact |
| 340~450Mpa | 210~225Mpa | 28~32% | 110-150 | ≥27 J |
|
Equivalent Material Standards Grade (GB T 700 Q235B) |
|||
| ASTM | EN | JIS | GOST |
| ASTM 36 | S235JR | SS400 | GOST 380 |
Why Hot-Dip Galvanized?
01 — Hot-Dip Galvanized Protection
Steel panels are protected with a zinc coating to improve resistance against corrosion.
02 — Strong Steel Structure
Q235 carbon steel provides a rigid structure for large-capacity water storage.
03 — Modular Bolted Design
Individual panels can be transported and assembled efficiently at the installation site.
04 — Easy Maintenance
The sectional structure makes inspection, maintenance and component replacement convenient.
Hot-dip galvanized water tank accessories
Water tank accessories, which are critical components of the tank, are categorized into internal and external parts. We offer a range of materials, including galvanized steel and stainless steel (SS304, SS316). Stainless steel is recommended for internal accessories when storing potable water, whereas either material is suitable for non-potable applications.
| Component | Specification / Description |
|---|---|

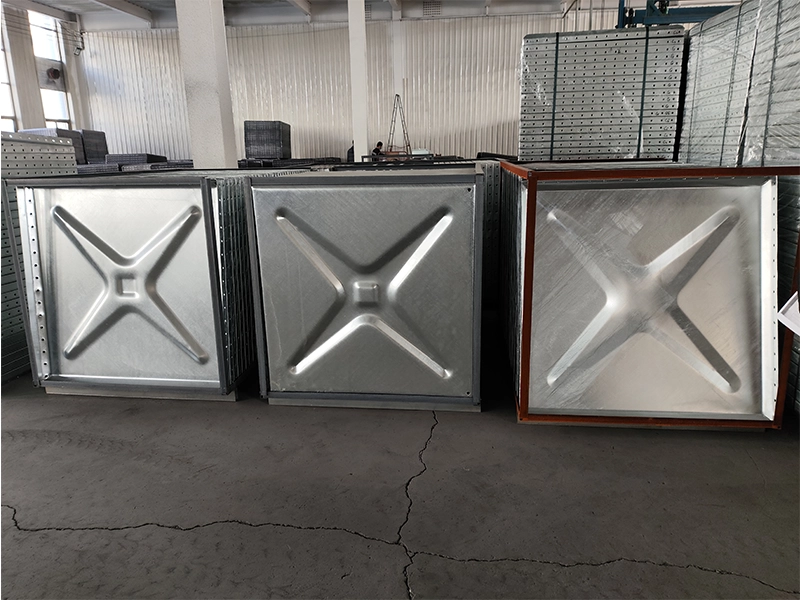

| Tank Panels | Panel sizes: 1220 × 1220 mm, 1000 × 1000 mm, 1000 × 500 mm, 500 × 500 mmPanel thickness: 2–5 mm |

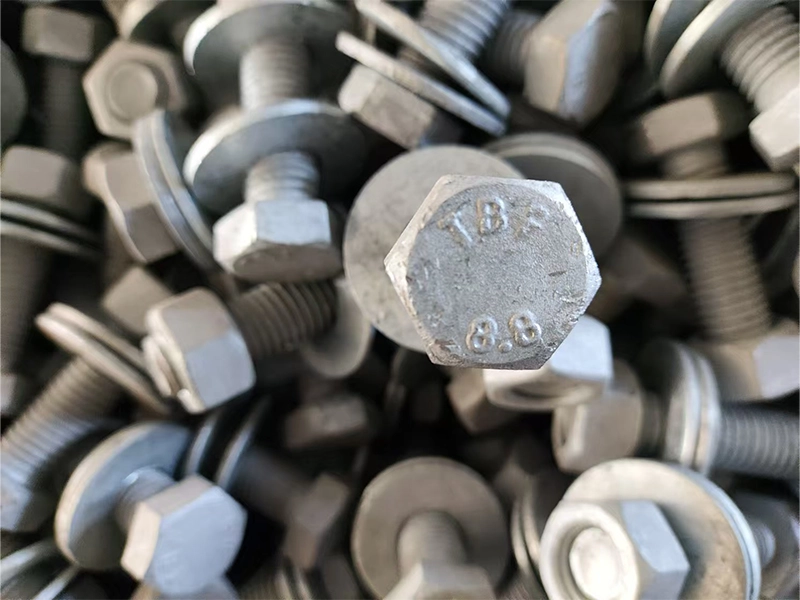

| Bolts, Nuts & Washers | Used for assembling tank panels.Material: Hot-dip galvanized steel or SS304/SS316 stainless steel |
| Base Frame | C-channel steel, 10# or 12#.Surface: Hot-dip galvanized or red-painted |
| Internal Structure | Support rods and tie rods made of hot-dip galvanized steel or stainless steel |
| Flanges | Used for drain, overflow and other tank connections.Material: Hot-dip galvanized steel or stainless steel |

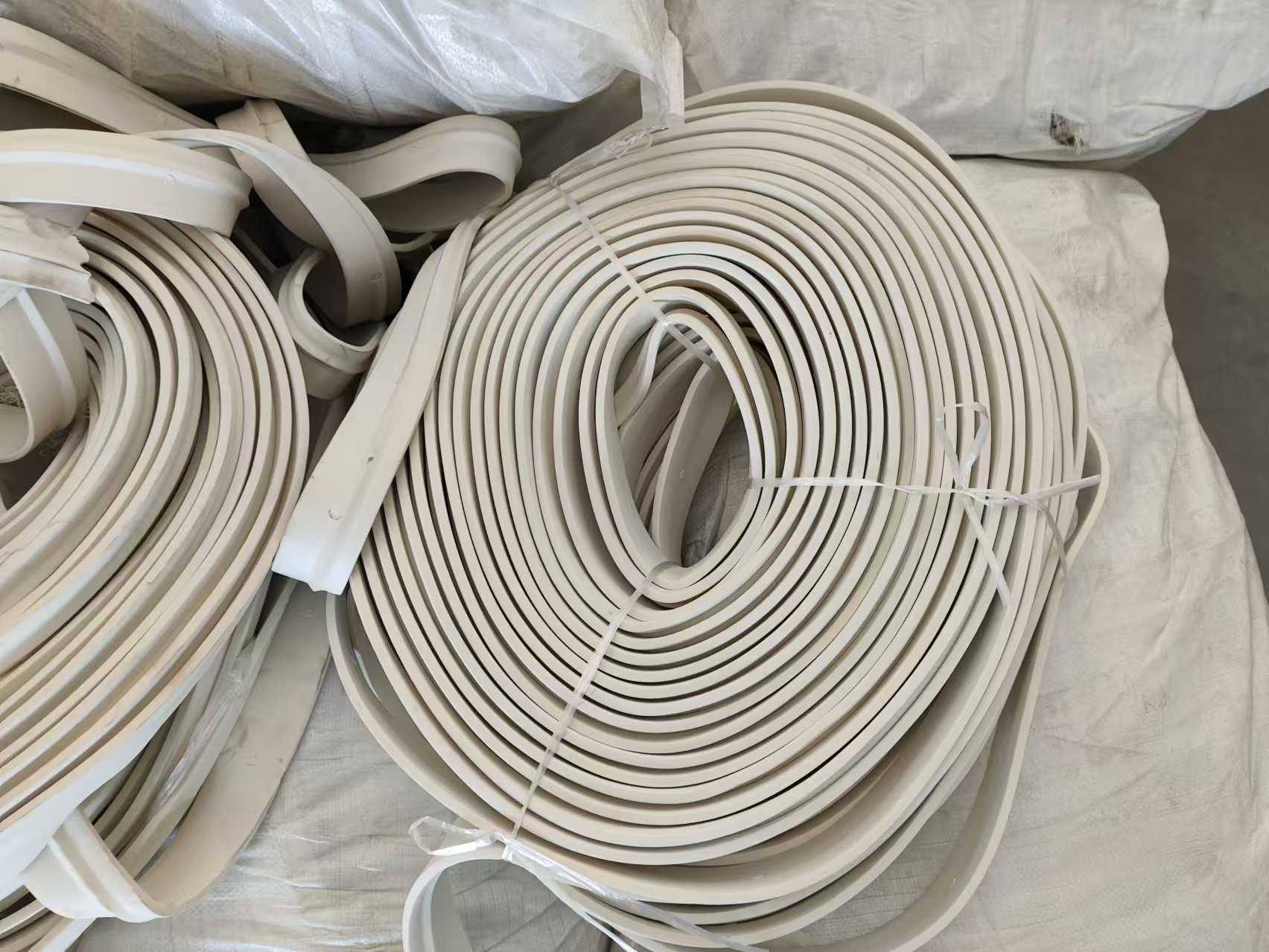

| Sealing Gasket | Food-grade white EPDM or silicone |
| Ladder | Used for tanks higher than 1.5 m.Material: Galvanized mild steel |
| Water Level Indicator | Glass level gauge with brass valve or float-type water level indicator |
| Manhole Cover | Standard manhole/access opening: 600 × 600 mm.Other sizes available upon request |

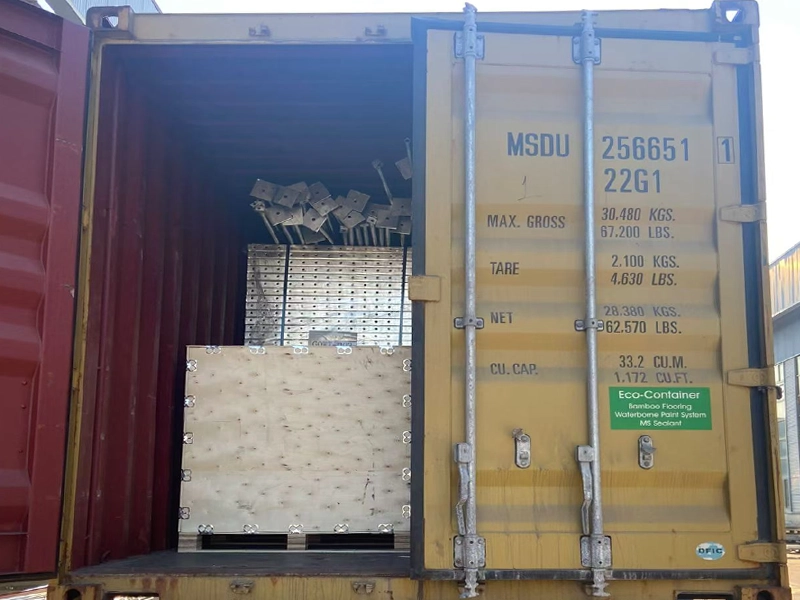

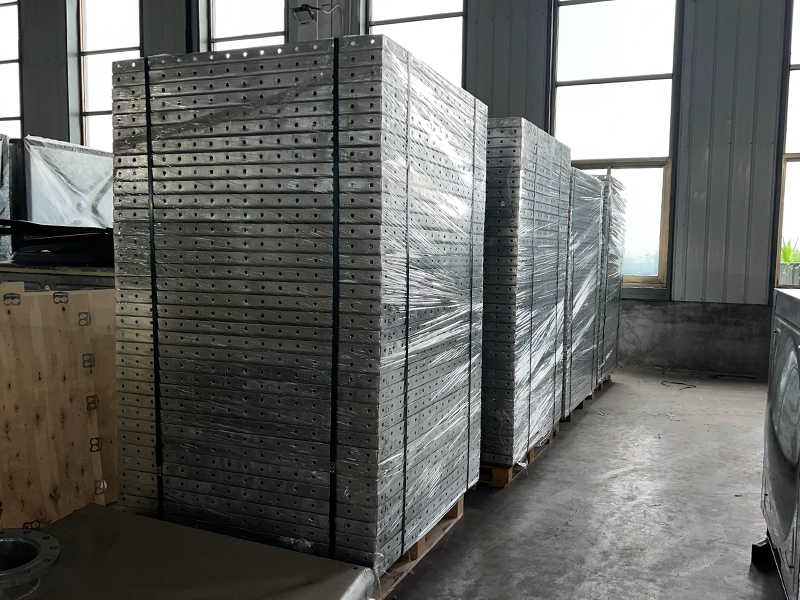

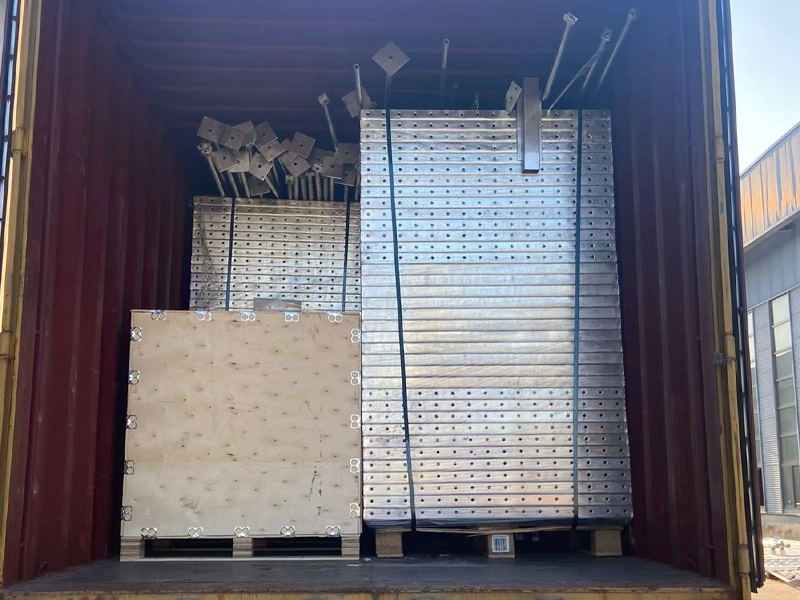

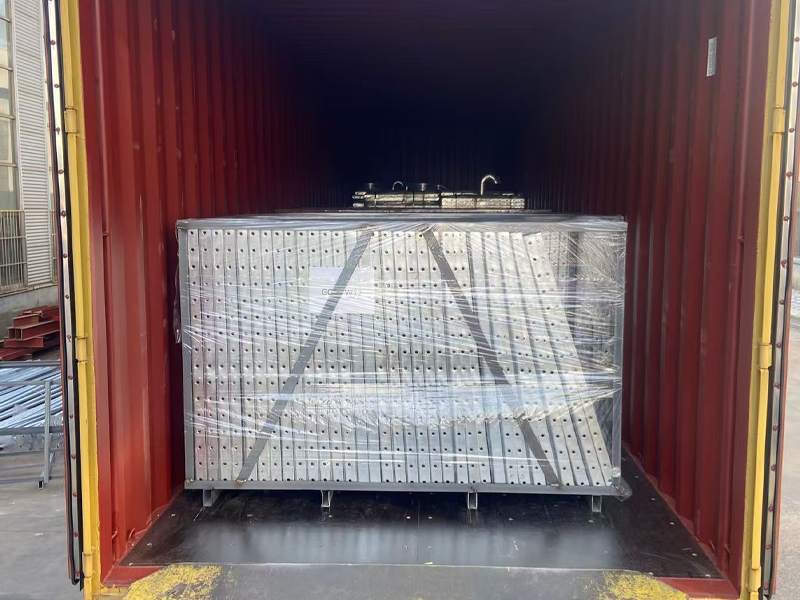

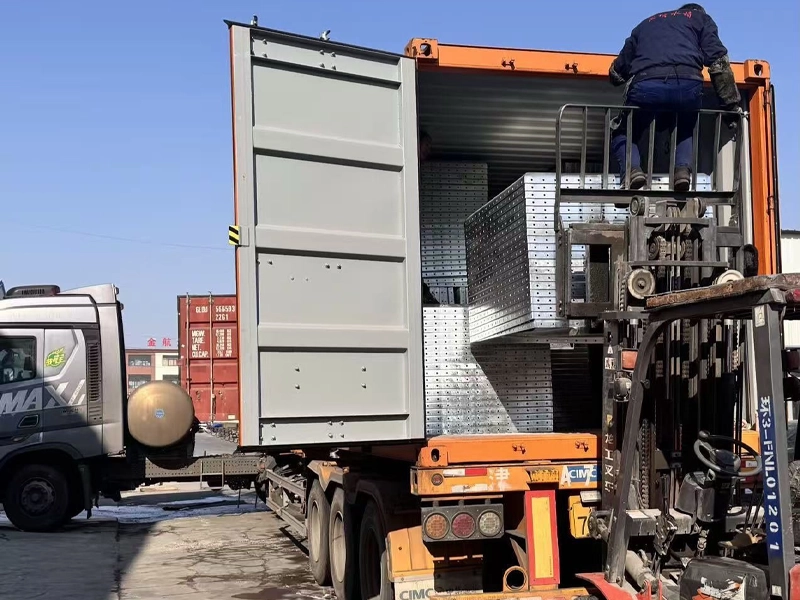

Packaging and Shipping
Get a Quote for Your Galvanized Steel Water Tank
Looking for a hot dip galvanized steel water tank manufacturer in China?
Send us your required:
Tank Capacity · Length × Width × Height · Water Type · Application · Location
GOOYI can provide the appropriate tank configuration, technical specifications, accessories, quotation, and installation information for your project.
GOOYI Water Tank Manufacturing
GOOYI focuses on the production and export of water storage tanks for international projects.
Our product range includes:
Modular GRP/SMC water tanks for commercial, industrial, municipal, and firefighting water storage applications.
Durable bolted steel water tanks with hot-dip galvanized protection for commercial, industrial, municipal, and firefighting applications.

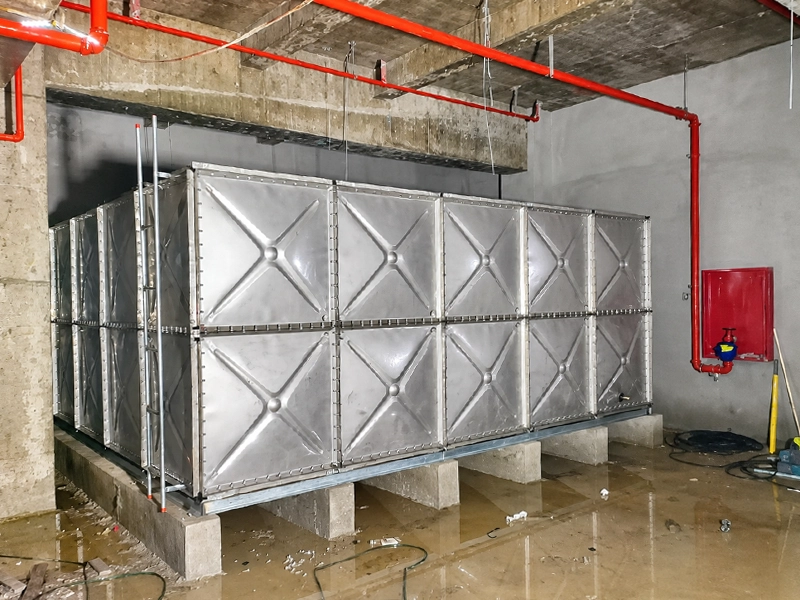

SS304 and SS316 modular stainless steel tanks for potable water, commercial, industrial, and municipal applications.
Corrugated galvanized steel tanks with flexible liners for rainwater, irrigation, firefighting, and large-volume industrial water storage.
Frequently Asked Questions
What is a hot dip galvanized steel water tank?
A hot dip galvanized steel water tank is a sectional water storage tank manufactured from carbon steel panels protected by a hot-dip galvanized coating.
What material are galvanized water tanks made from?
GOOYI galvanized steel water tanks primarily use Q235 carbon steel panels with hot-dip galvanized surface protection.
Are galvanized steel tanks suitable for outdoor installation?
Yes. The galvanized coating provides corrosion protection for outdoor water storage applications. The final design should consider the local environment, wind load, foundation, and project requirements.
Can galvanized steel tanks be used for firefighting water?
Yes. Galvanized steel sectional tanks are commonly used for fire water storage systems, subject to the applicable project standards and engineering requirements.
What capacity galvanized steel water tanks can you supply?
GOOYI supplies galvanized steel water tanks from approximately 0.5 m³ to 3,000 m³, with the final dimensions determined by the required capacity and structural design.
How are galvanized steel water tanks installed?
The tank panels are transported separately and assembled at the project site using bolts, gaskets, internal tie rods, external bracing, and other structural components.
